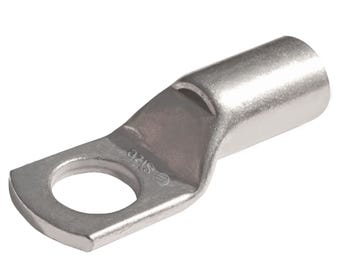

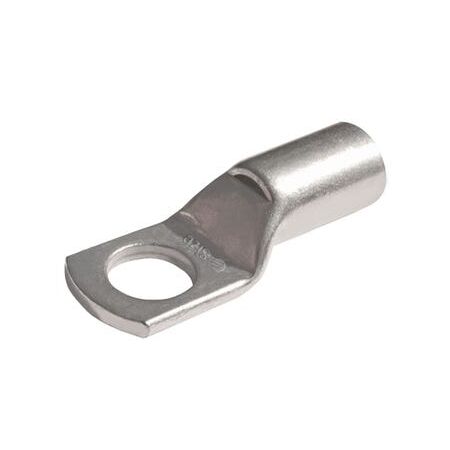

Copper Lug 25mm² Cable 10mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 25mm² cable capacity and 10mm stud—ideal for secure electrical connections. Built for industrial and residential wiring, with high conductivity copper and durable tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 25mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL25-10
Alternatively Known As: Copper Cable Lug 25mm², 10mm Stud Copper Crimp Lug, Electrical Copper Lug, Copper Cable Connector
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 25 mm²
- Stranding: 19 strands of 1.35 mm diameter
- ID size: 7.1 mm
- Stud size: 10 mm
- Recommended torque (Nm): 10 mm stud - 44 Nm
- Dimensions (H x L x W): 10mm x 50mm x 25mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure compliance and safety.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring secure cable connections
- General use in electrical and power distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity copper reduces energy loss and improves efficiency
- Durable electroplating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 25mm2 Cable 10mm Stud is available for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable terminations.
