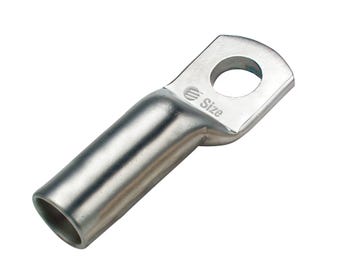

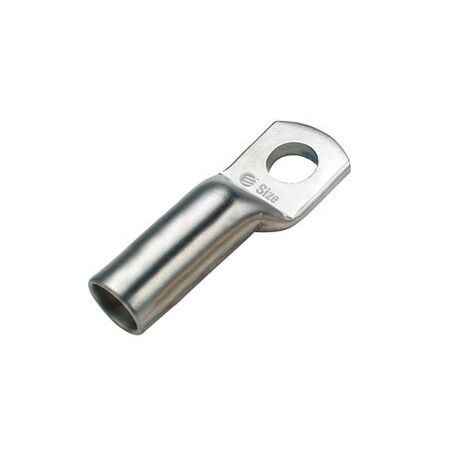

Copper Lug 25mm² Cable with 12mm Stud | High Conductivity | Long Barrel Design | Airtight Sealing by Cabac
The Cabac Copper Lug 25mm2 Cable with 12mm Stud is a high conductivity, long barrel copper lug designed for external electrical use, providing excellent electrical properties and airtight sealing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 25mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL25LB-12
Alternatively Known As: Copper Cable Lug 25mm², 12mm Stud Copper Terminal, Long Barrel Copper Lug, Electrical Copper Connector
Technical Specifications
- Nominal Conductor Size: 25mm²
- Stud Size: 12mm
- Conductor Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductility Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 12mm x 70mm x 25mm
- Weight: 0.05 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Extra long barrel allows more crimps and heatshrink sealing for airtight protection
- Palms are solder sealed to prevent water ingress
- Designed for crimping with standard hexagon dies
- Electroplated with 99.9% pure tin with lead and antimony
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper crimping and sealing.
Applications
- Electrical power connectivity for high voltage terminations
- Drop outfuses and other high stress electrical areas
- External use in electrical installations requiring durable copper lugs
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from high purity copper which is recyclable and sustainable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Lug 25mm2 Cable 12mm Stud is available for immediate purchase, ideal for electrical power connectivity applications requiring durable and high conductivity copper lugs.
