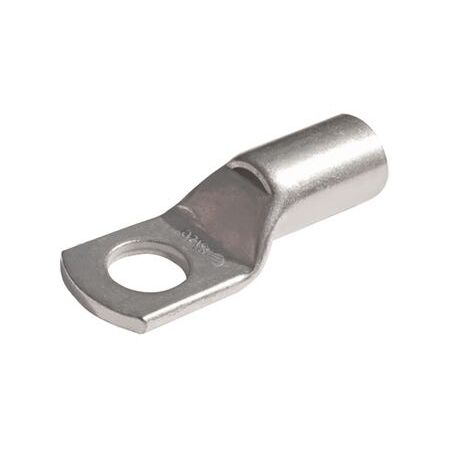

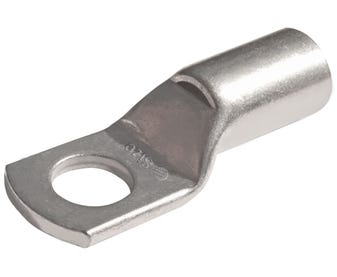

Copper Lug 25mm² Cable 8mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 25mm² cable capacity and 8mm stud—ideal for secure electrical connections. Built for industrial and residential wiring, with high conductivity and durable tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 25mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL25-8
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Cable Connector, 25mm2 Copper Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 25 mm²
- Stranding: 19 strands of 1.35 mm diameter
- ID size: 7.1 mm
- Stud size: 8 mm
- Quantity per box: 50
- Dimensions (H x L x W): 8mm x 50mm x 25mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian tooling to ensure proper crimping and compliance with torque specifications.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring secure cable connections
- General use in electrical and power distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss and improves electrical efficiency
- Durable materials extend product life, reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Lug 25mm2 Cable 8mm Stud is available for immediate purchase, ideal for electrical power connectivity applications in residential, commercial, and industrial settings.
