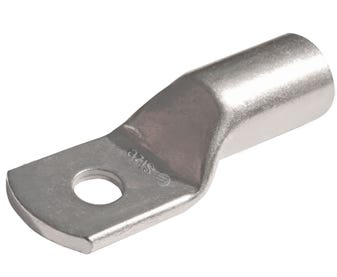

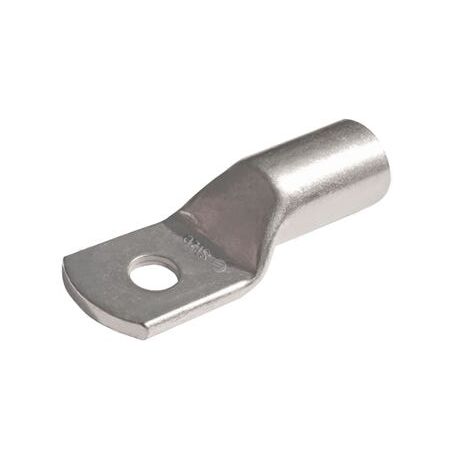

Copper Lug 300M2 Cable | 12mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 300M2 cable and 12mm stud—ideal for industrial and commercial electrical installations. Built for optimal electrical performance, with high conductivity annealed copper and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 300M2 Cable 12mm Stud
Brand: Cabac
SKU: CAL300-12
Alternatively Known As: Copper Crimp Lug 300mm2, 12mm Stud Copper Lug, Electrical Copper Lug, High Conductivity Copper Crimp Terminal
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 300 mm²
- Stranding: 61 strands of 2.52 mm diameter
- ID size: 23.5 mm
- Stud size: 12 mm
- Recommended torque for 12 mm stud: 77 Nm
- Dimensions (H x L x W): 12mm x 60mm x 23.5mm
- Weight: 0.15 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for corrosion resistance
- Interchangeable tooling compatible with CABAC, Utilux, and Burndy standard tooling
- Complies with AS4325.1 Australian standard for copper crimp lugs
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Suitable for use in electrical wiring and cabling requiring secure and reliable connections
- General purpose crimp lugs for electrical and power systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325.1 Australian standard for copper crimp lugs
Environmental Benefits
- High conductivity copper reduces energy loss and improves electrical efficiency
- Durable electroplated finish extends product life reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy. Please refer to supplier for detailed warranty terms.
Available Now
The Cabac Copper Lug 300M2 Cable 12mm Stud is available now for immediate purchase. Ideal for electrical power connectivity in industrial and commercial applications.
