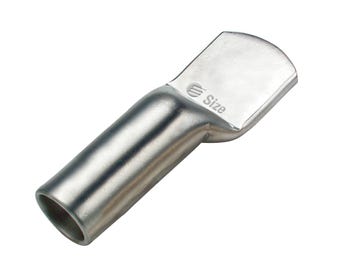

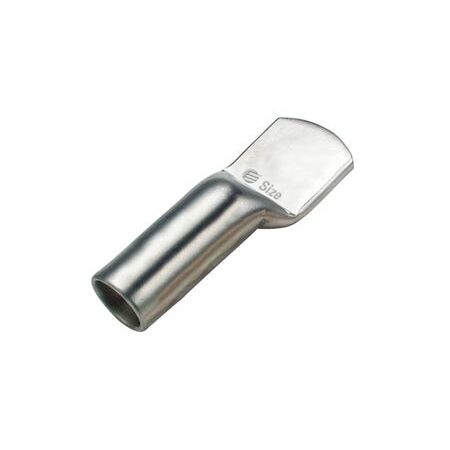

Copper Lug 300mm² Cable Blank | 99.95% Pure Copper | Long Barrel Design | Airtight Seal by Cabac
The Cabac Copper Lug 300mm2 Cable Blank is a high conductivity, outdoor style long barrel lug designed for secure, airtight electrical connections in high stress and high voltage applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 300mm2 Cable Blank
Brand: Cabac
SKU: CAL300LB
Alternatively Known As: Copper Cable Lug 300mm2, Long Barrel Copper Lug, Outdoor Copper Cable Lug, High Conductivity Copper Lug
Technical Specifications
- Nominal Conductor Size: 300mm²
- ID Size: 23.5mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 100mm x 30mm
- Weight: 0.5 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Copper palms solder sealed to prevent water ingress
- Extra long barrel allows multiple crimps for high stress areas
- Designed for crimping with standard hexagon dies
- Electroplated with 99.9% pure tin with lead and antimony
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and sealing for optimal performance and safety.
Applications
- High voltage terminations
- Drop outfuses
- External electrical connections requiring durable and airtight cable lugs
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements
- Ensures efficient electrical conductivity reducing energy loss
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Lug 300mm2 Cable Blank is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring durable and high conductivity cable lugs.
