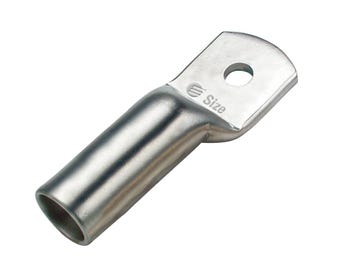

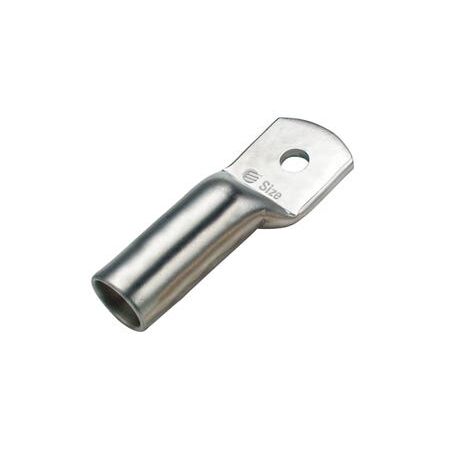

Copper Lug 300mm² Cable 10mm Stud | High Conductivity | AS4325.1 Compliant | Durable Design by Cabac
The Cabac Copper Lug 300mm2 Cable 10mm Stud is a high-quality electrical connector made from annealed copper, designed for reliable cable termination and compliance with Australian standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 300mm2 Cable 10mm StudCopper Lug
Brand: Cabac
SKU: CAL300LB-10
Alternatively Known As: Copper cable lug, copper cable connector, copper crimp lug, electrical cable lug
Technical Specifications
- Material: High conductivity annealed copper
- Cable Size: 300mm²
- Stud Size: 10mm
- Crimping: CABAC and MSS Power standard tooling and dies
- Standard Compliance: AS4325.1
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.2 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Complies with AS4325.1 for copper conductors
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical power connectivity
- Cable termination and connection in industrial and commercial electrical systems
- Suitable for use in electrical panels and switchboards
Standards & Compliance
- Complies with AS4325.1 – Copper conductors
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements
Warranty Information
Warranty against manufacturing defects for 12 months.
Available Now
The Cabac Copper Lug 300mm2 Cable 10mm Stud is available for immediate purchase, ideal for electrical power connectivity applications.
