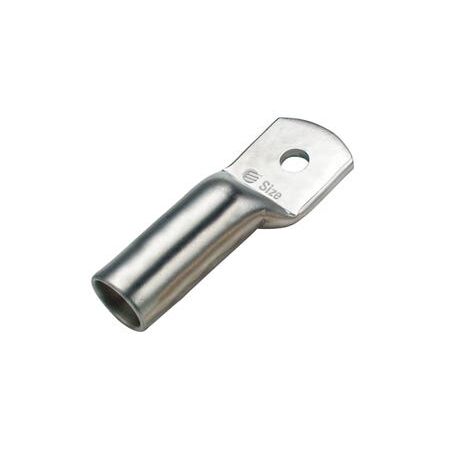

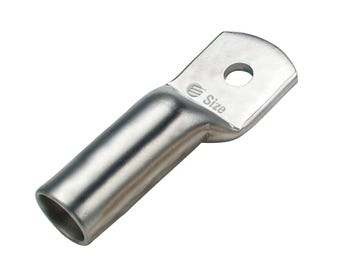

Copper Lug 300mm2 Cable 12mm Stud | High Conductivity | Solder Sealed | Outdoor Use by Cabac
Copper Lug 300mm2 Cable 12mm Stud by Cabac is a high conductivity copper lug designed for outdoor use with solder sealed palms to prevent water ingress, ideal for high voltage and high stress electrical terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 300mm2 Cable 12mm StudCopper Lug
Brand: Cabac
SKU: CAL300LB-12
Alternatively Known As: Copper Cable Lug, Long Barrel Copper Lug, Outdoor Copper Lug, High Conductivity Copper Terminal
Technical Specifications
- Conductive Material: Copper 99.95% pure
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Final metal state: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55 to 155°C
- Tooling interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 120mm x 40mm
- Weight: 0.2 kg
Key Features
- Made from 99.95% pure high conductivity annealed copper
- Copper palms solder sealed to prevent water ingress
- Extra long barrel allows multiple crimps and heatshrink sealing
- Designed for external use with no window present
- Compatible with standard hexagon crimping dies
- Electroplated with 99.9% pure tin with lead and antimony
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Installation by a qualified electrician or technician experienced with crimping copper lugs is recommended to ensure secure and compliant connections.
Applications
- Electrical power connectivity for high voltage terminations
- Outdoor electrical installations requiring water ingress protection
- Crimping with standard hexagon dies for secure cable connections
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements
- Supports efficient electrical conductivity reducing energy loss
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Copper Lug 300mm2 Cable 12mm Stud by Cabac is available for immediate purchase, ideal for electrical power connectivity and outdoor high voltage applications.
