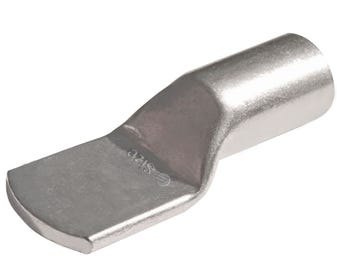

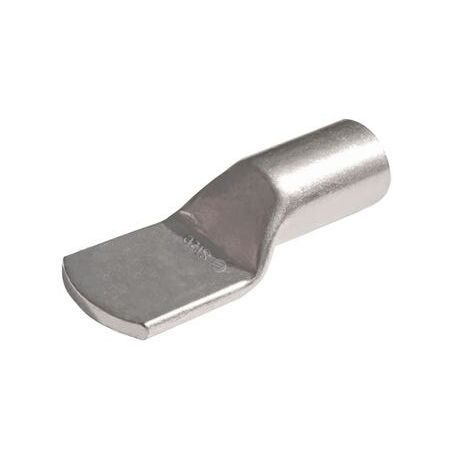

Copper Lug 300mm² Cable Blank | High Conductivity | Tin Plated | Cabac
Copper lug with 300mm² nominal size and high conductivity—ideal for industrial and commercial electrical installations. Built for secure connections, with tin plating for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 300mm2 Cable Blank
Brand: Cabac
SKU: CAL300
Alternatively Known As: Copper Crimp Lug 300mm2, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin, 5-10 microns thickness
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 300 mm²
- Stranding: 61 strands of 2.52 mm diameter
- ID size: 23.5 mm
- Torque recommendations: 5 mm thread - 5 Nm, 6 mm - 9 Nm, 8 mm - 22 Nm, 10 mm - 44 Nm, 12 mm - 77 Nm, 16 mm - 190 Nm
- Dimensions (H x L x W): 10mm x 80mm x 30mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with 5-10 microns thickness for corrosion resistance
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Complies with AS4325 Part 1 and international standards IEC, DIN/VDE, JIS, BS, and NEMA
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Used for secure cable terminations in power distribution systems
- Suitable for use in electrical panels, switchboards, and heavy-duty electrical equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss and improves electrical efficiency
- Durable tin plating extends product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 300mm2 Cable Blank is available now for immediate purchase. Ideal for electrical power connectivity applications in industrial and commercial settings.
