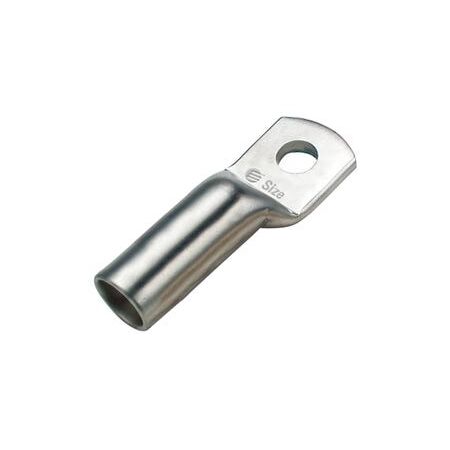

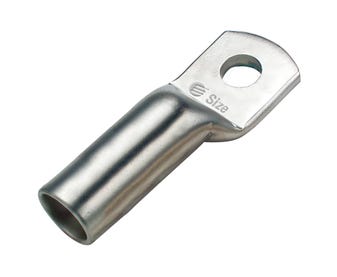

Copper Lug 35mm2 Cable 10mm Stud | High Conductivity | Long Barrel Design | Water Resistant by Cabac
The Cabac Copper Lug 35mm2 Cable with 10mm Stud is a high conductivity, outdoor style long barrel lug designed for secure, water-resistant electrical connections in high stress and high voltage applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 35mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL35LB-10
Alternatively Known As: Copper Cable Lug 35mm2, Long Barrel Copper Lug, Outdoor Copper Lug 10mm Stud, High Conductivity Copper Lug
Technical Specifications
- Nominal Conductor Size: 35 mm²
- ID Size: 8.2 mm
- Stud Size: 10 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 80mm x 35mm
- Weight: 0.05 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Extra long barrel allows more crimps and heatshrink sealing for airtight protection
- Palms are solder sealed to prevent water ingress
- Designed for crimping with standard hexagon dies
- Tin electroplating with 5-10 microns thickness for corrosion resistance
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard hexagon crimping dies to ensure secure and compliant connections.
Applications
- Electrical power connectivity for high voltage terminations
- Outdoor electrical installations requiring water ingress protection
- Crimping with standard hexagon dies for secure cable connections
Standards & Compliance
- AS4325 Part 1 Australia
Environmental Benefits
- Made from highly conductive copper reducing energy loss in electrical systems
- Durable design extends product life, reducing waste and replacement frequency
Warranty Information
Warranty details available upon request; typically covered against manufacturing defects.
Available Now
The Cabac Copper Lug 35mm2 Cable 10mm Stud is available for immediate purchase, ideal for outdoor electrical power connectivity and high voltage applications.
