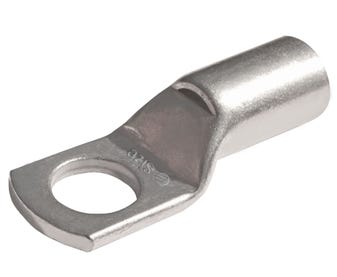

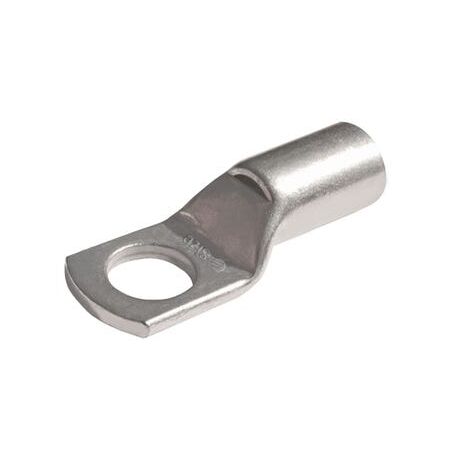

Copper Lug 35mm² Cable 12mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 35mm² cable capacity and 12mm stud—ideal for industrial and residential wiring. Built for secure electrical connections, with high conductivity copper and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 35mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL35-12
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Cable Connector
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony
- Tin thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 35 mm²
- Stranding: 19 strands of 1.53 mm diameter
- ID size: 8.2 mm
- Stud size: 12 mm
- Recommended torque for 12 mm stud: 77 Nm
- Dimensions (H x L x W): 12mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Electroplated with 99.9% pure tin for corrosion resistance
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure compliance and safety.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring secure cable connections
- Compatible with standard Australian tooling for crimping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable tin plating extends product life reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Lug 35mm2 Cable 12mm Stud is available for immediate purchase, ideal for electrical power connectivity applications.
