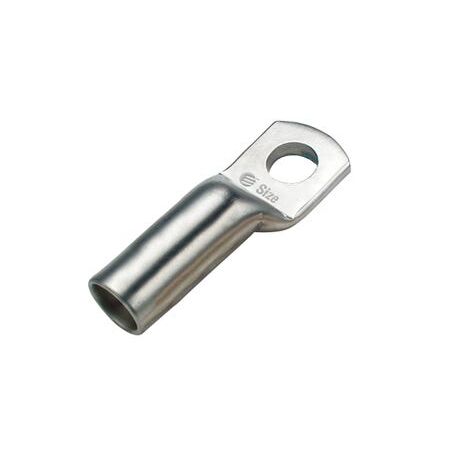

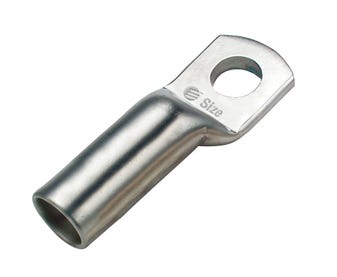

Copper Lug 35mm² Cable 12mm Stud | High Conductivity | Water-Resistant | Long Barrel by Cabac
The Cabac Copper Lug 35mm2 Cable 12mm Stud Sealed Palm is a high conductivity, outdoor rated copper lug designed for secure, water-resistant electrical connections in high stress areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 35mm2 Cable 12mm Stud Sealed Palm
Brand: Cabac
SKU: CAL35LB-12
Alternatively Known As: Copper Cable Lug, Sealed Copper Crimp Lug, Outdoor Copper Electrical Lug, Long Barrel Copper Lug
Technical Specifications
- Nominal Conductor Size: 35mm²
- Stud Size: 12mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: 99.9% pure tin with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Compatibility: Interchangeable with CABAC, Utilux, and Burndy tooling
- Dimensions (H x L x W): 12mm x 80mm x 35mm
- Weight: 0.05 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Copper palms are solder sealed to prevent water ingress
- Extra long barrel allows multiple crimps and heatshrink sealing
- Designed for crimping with standard hexagon dies
- Tin electroplating for corrosion resistance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and sealing for optimal electrical performance and safety.
Applications
- Electrical power connectivity for high voltage terminations
- Drop outfuses and other high stress electrical connections
- Outdoor electrical installations requiring water ingress protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Cabac.
Available Now
The Cabac Copper Lug 35mm2 Cable 12mm Stud Sealed Palm is available for immediate purchase, ideal for outdoor electrical power connectivity applications requiring durable and water-resistant lugs.
