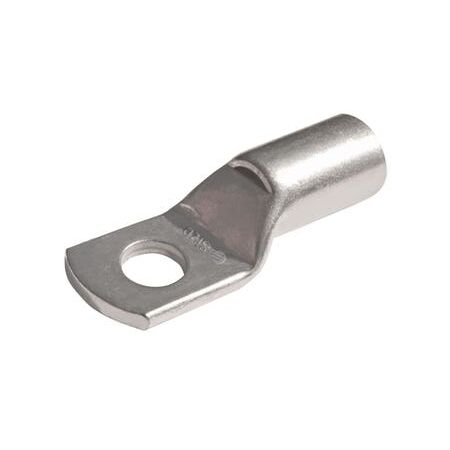

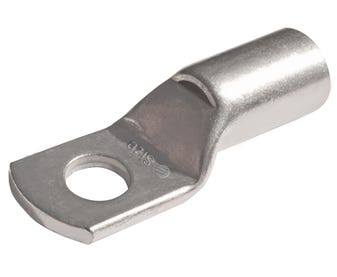

Copper Lug 35mm² Cable 8mm Stud | High Conductivity | Corrosion Resistant by Cabac
Copper lug with 35mm² cable and 8mm stud—ideal for industrial and commercial electrical installations. Built for reliable power connectivity, with high conductivity annealed copper and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 35mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL35-8
Alternatively Known As: Copper Cable Lug, Copper Crimp Lug, Electrical Cable Lug, Copper Terminal Lug, 35mm2 Copper Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 35 mm²
- Stranding: 19 strands of 1.53 mm diameter
- ID size: 8.2 mm
- Stud size: 8 mm
- Quantity per box: 50
- Dimensions (H x L x W): 8mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for corrosion resistance
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with Utilux and Burndy brands
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure compliance and safety.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Suitable for use in electrical wiring and cable terminations
- General use in electrical and power distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electroplating extends product life reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Lug 35mm2 Cable 8mm Stud is available for immediate purchase, ideal for electrical power connectivity and cable termination applications.
