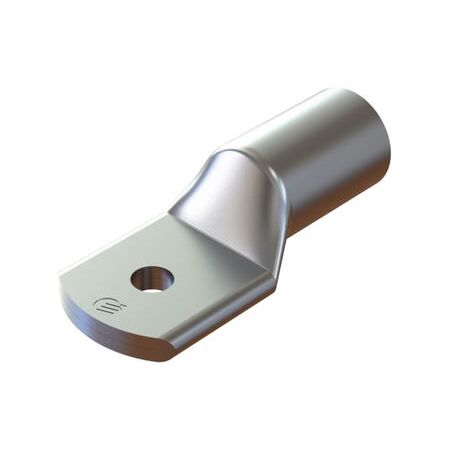

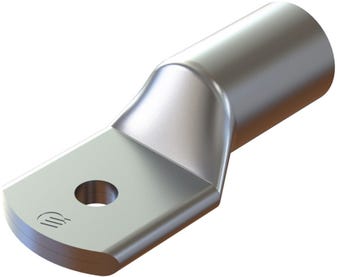

Copper Lug 400mm² 20mm Stud Cabac
Cabac copper lug features 400mm² conductor size, 20mm stud hole, and crimp barrel. Ideal for terminating cable to switchboard studs and bars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 400 mm² Copper Cable Lug, CAL400-20 Copper Lug, Copper Compression Lug, Switchboard Cable Lug
Technical Specifications
- Conductor Size: 400 mm² copper cable
- Stud Hole Size: 20 mm
- Material: 99.9%+ high-conductivity annealed copper
- Surface Finish: Tin-plated copper
- Conductor Internal Diameter: Approximately 26.8 mm
- Recommended Crimps: 3
- Recommended Crimp Die: ECW-H3D-400
- Operating Temperature: -55°C to +155°C
- Application Type: Compression crimp termination
- Dimensions (H x L x W): 8.5mm x 124mm x 56mm
- Weight: 0.55 kg
Key Features
- Suitable for terminating 400 mm² copper conductors
- 20 mm stud hole for switchboard studs, busbars and connection bars
- Manufactured from high-conductivity annealed copper
- Tin-plated finish supports corrosion resistance and reliable electrical contact
- Designed for three-crimp installation using compatible Australian crimping tooling
- Large-size lug supplied without an inspection window for outdoor and heavy-duty applications
Professional Installation Requirements
- Installation should be performed by a suitably qualified electrician using the specified hydraulic crimping tool and die. Verify conductor preparation, crimp position and electrical clearance in accordance with the cable manufacturer's instructions and AS/NZS 3000.
Applications
- Switchboard cable terminations
- Connection of large copper cables to busbars and studs
- Industrial power distribution equipment
- Commercial and industrial electrical installations
- High-current cable connection and maintenance work
Standards & Compliance
- Designed and manufactured to the applicable requirements of AS/NZS 4325.1 for compression connectors for power cables
- Electrical installation use should comply with AS/NZS 3000 where applicable
Environmental Benefits
- Copper is highly recyclable and can be recovered at the end of the product's service life
- Durable copper construction can support long service life and reduce replacement waste
- Tin-plated copper helps resist corrosion and maintain connection reliability over time
Warranty Information
Covered by CABAC's standard 12-month warranty from date of purchase where no product-specific warranty is stated, subject to correct installation, intended use and Australian Consumer Law.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
