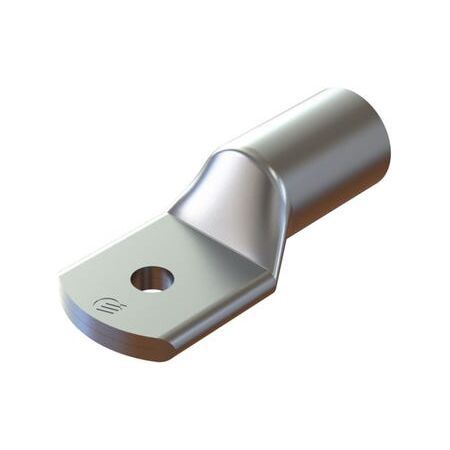

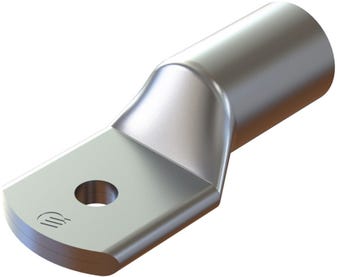

Copper Lug 400mm² 8mm Stud Cabac
Cabac copper lug features 400mm² conductor size, 8mm stud hole, and crimp barrel. Ideal for terminating cable to switchboard studs and bars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 400mm² Copper Cable Lug, Copper Crimp Lug, Tinned Copper Cable Lug, Switchboard Cable Lug
Technical Specifications
- Nominal Conductor Size: 400mm²
- Stud Hole Size: 8mm
- Material: High-conductivity annealed copper
- Copper Purity: 99.95% copper
- Finish: Electro-tinned copper, approximately 5–10µm coating
- Connection Type: Crimp
- Crimping: Use compatible CABAC, MSS Power or approved Australian tooling and dies
- Operating Temperature: -55°C to 155°C
- Conformance: AS/NZS 4325.1 / AS 4325.1
- Packaging Quantity: 1 each
- Dimensions (H x L x W): 8.5mm x 126mm x 56mm
- Weight: 0.28 kg
Key Features
- Designed for terminating 400mm² copper cable
- 8mm stud hole for connection to compatible switchboard studs and busbars
- High-conductivity annealed copper construction
- Electro-tinned finish supports corrosion resistance and reliable electrical contact
- Suitable for general-purpose electrical and power connectivity applications
- Compatible tooling platform with CABAC, Utilux and Burndy systems
- Three-crimp configuration for large-conductor termination
Professional Installation Requirements
- Installation and crimping should be performed by a licensed electrician or suitably qualified electrical tradesperson using the manufacturer's specified crimping tools, dies and installation procedures. Tighten the terminal connection to the equipment manufacturer's specified torque and comply with AS/NZS 3000.
Applications
- Switchboard cable termination
- Busbar and power-distribution connections
- Electrical control panels
- Industrial power installations
- Commercial electrical infrastructure
- Large copper conductor connections
Standards & Compliance
- AS/NZS 4325.1 for compression and mechanical connectors for power cables with copper or aluminium conductors
- AS/NZS 3000 Wiring Rules apply to the completed electrical installation
Environmental Benefits
- Copper is highly recyclable and can be recovered at end of product life
- Tinned finish helps resist corrosion and can extend service life, reducing replacement waste
- Durable crimped connections support long-term electrical system reliability
Warranty Information
CABAC's general warranty provides coverage for defects for 12 months from the date of purchase where no specific product warranty is stated, subject to correct installation, use and proof of purchase. Australian Consumer Law rights also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock.
