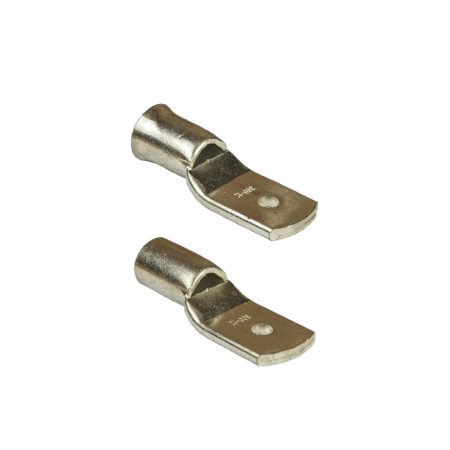

Copper Lug 400mm sq | Flared Entry | Electro Tinned | 99% Oxygen Free by United Manufacturers Australia
Copper lug with a 400mm sq size and flared entry design—ideal for secure electrical connections in industrial and commercial applications. Made from 99% oxygen-free copper and electro tinned for corrosion resistance, it ensures maximum conductivity and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fixed Entry Lug#UMBML400-20
Brand: United Manufacturers Australia
SKU: UMBML400-20
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Copper Lug, Copper Terminal Lug
Technical Specifications
- Type: Flared Entry
- Size: 400.0mm sq - 20.0mm stud
- Material: 99% oxygen free copper
- Finish: Electro Tinned
- Operating Temperature: -55°C to +155°C
- Dimensions (H x L x W): 20mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Fully annealed for maximum conductivity and flexibility
- Made from 99% oxygen free copper
- Electro tinned for corrosion resistance
- Flared entry design for easy cable insertion
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections requiring secure and reliable copper lugs
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable copper material
- Electro tinning enhances longevity reducing replacement frequency
Warranty Information
Warranty against manufacturing defects as per United Manufacturers Australia standard policy.
Available Now
The Bell Mouth Copper Lug 400mm sq-20mm stud by United Manufacturers Australia is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
