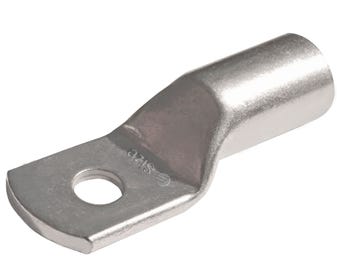

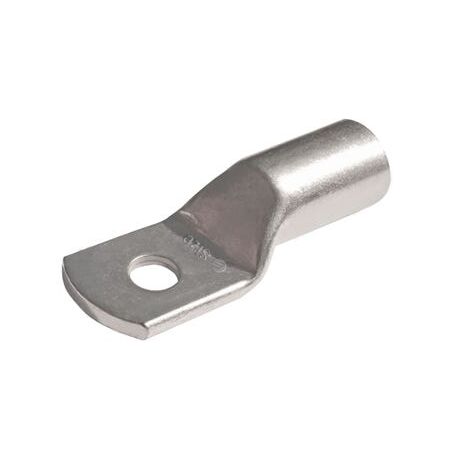

Copper Lug 400mm2 Cable 10mm Stud | High Conductivity | Electroplated Tin | Compliant with AS/NZS 4325.1 by Cabac
Cabac Copper Lug 400mm2 Cable with 10mm Stud is a high conductivity annealed copper crimp lug designed for reliable electrical connections, compliant with AS4325.1 and suitable for general purpose electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 400mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL400-10
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Torque recommendations (Nm): 5mm thread - 5, 6mm - 9, 8mm - 22, 10mm - 44, 12mm - 77, 16mm - 190
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Electroplated with 99.9% pure tin with 5-10 microns thickness
- Interchangeable tooling compatible with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tooling to ensure proper connection and compliance with torque specifications.
Applications
- Electrical power connectivity
- General purpose crimp lugs for electrical installations
- Suitable for use with standard Australian tooling
Standards & Compliance
- Complies with AS/NZS 4325.1 – Copper Cable Lugs and Connectors
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Lug 400mm2 Cable 10mm Stud is available for immediate purchase, ideal for electrical power connectivity and general purpose crimping applications.
