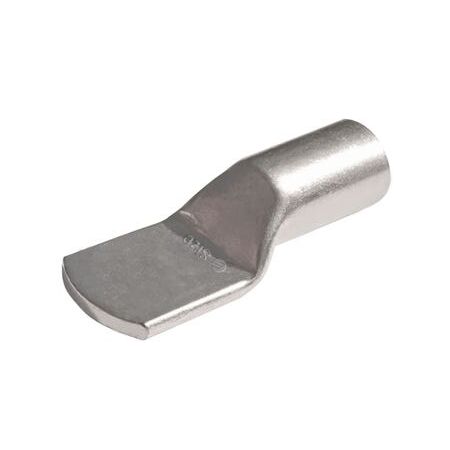

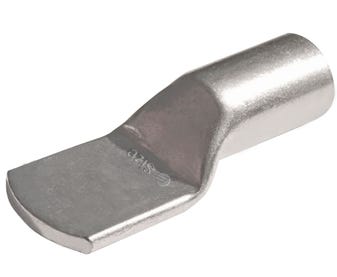

Copper Lug 400mm² Cable Blank | High Conductivity | Tin Plated | AS4325 Compliant by Cabac
Copper lug with 400mm² capacity and high conductivity, tin-plated for durability—ideal for industrial and commercial electrical installations. Built for reliable power connectivity, compliant with AS4325 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 400mm2 Cable Blank
Brand: Cabac
SKU: CAL400
Alternatively Known As: Copper Crimp Lug 400mm2, Copper Cable Lug, Electrical Copper Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 400 mm²
- Stranding: 61 strands of 2.85 mm diameter
- ID size: 26.8 mm
- Torque recommendations (Nm): 5 mm thread - 5 Nm, 6 mm - 9 Nm, 8 mm - 22 Nm, 10 mm - 44 Nm, 12 mm - 77 Nm, 16 mm - 190 Nm
- Dimensions (H x L x W): 10mm x 100mm x 30mm
- Weight: 0.3 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Complies with AS4325 Part 1 Australian standard and international standards IEC, DIN/VDE, JIS, BS, NEMA
Professional Installation Requirements
- Should be crimped using standard Australian tooling by a qualified electrician to ensure proper electrical connection and safety.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- General purpose crimp lugs for electrical wiring and cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable electroplating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Lug 400mm2 Cable Blank is available now for immediate purchase. Ideal for electrical power connectivity and cable termination applications.
