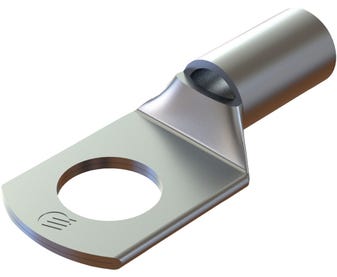

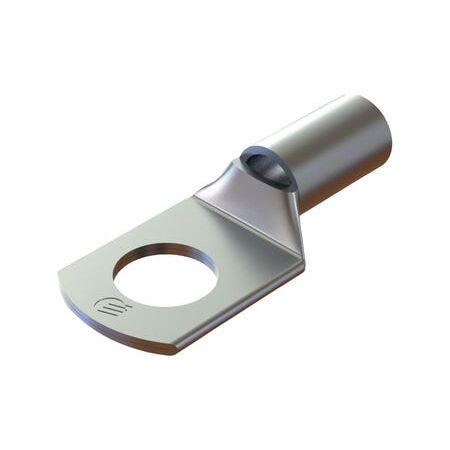

Copper Lug 4mm² 6mm Stud Pack of 10 Cabac
Cabac copper lug features 4mm² conductor size, 6mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper cable lug, copper crimp terminal, ring cable lug, CAL4-6
Technical Specifications
- Part Number: CAL4-6
- Conductor Size: 4mm²
- Stud Hole Size: 6mm
- Conductor Stranding: 7/0.85
- Barrel Internal Diameter: 3.1mm
- Material: 99.95% pure high-conductivity annealed copper
- Finish: Tin plated, approximately 5–10 microns
- Electrical Conductivity: 99.7% IACS
- Tensile Strength: 200MPa
- Operating Temperature: -55°C to 155°C
- Crimping: One crimp using K26, K27 or K28 crimp dies
- Pack Quantity: 10 lugs
- Dimensions (H x L x W): 11mm x 22mm x 10mm
- Weight: 0.1 kg
Key Features
- Suitable for terminating 4mm² copper conductors
- 6mm stud hole for connection to compatible terminals, bolts and busbars
- Made from high-conductivity annealed copper for electrical performance and crimping flexibility
- Tin-plated surface helps improve corrosion resistance
- General-purpose lug for electrical cable terminations
- Compatible with standard Australian crimping tooling
- CABAC, Utilux and Burndy tooling interchangeability
Applications
- Electrical panel and switchboard wiring
- Battery and power cable terminations
- Control and industrial electrical equipment
- Automotive, marine and general low-voltage cable connections
Standards & Compliance
- AS 4325.1 for compression connectors and cable lugs
Environmental Benefits
- Copper is highly recyclable at end of service life
- Annealed copper construction and tin plating support a durable termination, reducing replacement waste
- High electrical conductivity can help minimise connection losses when correctly installed
Warranty Information
Cabac terms provide repair or replacement for defective goods for one year from the date of supply, subject to correct installation, use and applicable Australian Consumer Law rights.
Available Now
Available through CABAC and authorised Australian electrical distributors; supplied by CABAC in 100-piece boxes, with this listing configured as a pack of 10.
