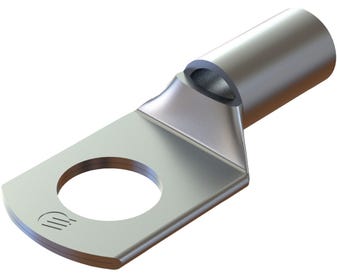

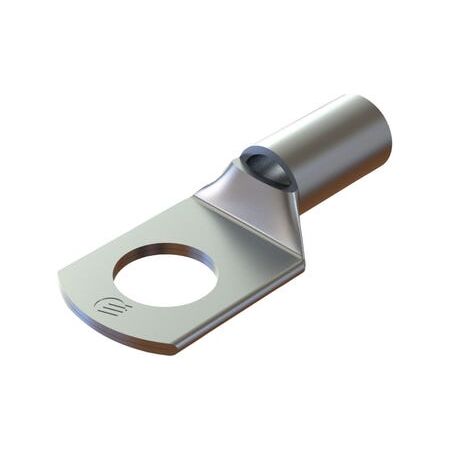

Copper Lug 4mm² 8mm Stud Pack of 10 Cabac
Cabac copper lug features 4mm² conductor size, 8mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper crimp lug, cable lug, ring terminal, CAL4-8/K10
Technical Specifications
- Conductor Size: 4mm²
- Stud Hole Size: 8mm
- Conductor Stranding: 7/0.85
- Barrel Inside Diameter: 3.1mm
- Material: 99.95% pure annealed copper
- Surface Finish: Tin plated, 5–10 microns
- Conductivity: 99.7% IACS
- Lug Type: Standard copper crimp lug
- Recommended Tooling: CABAC, MSS Power and compatible Australian-standard crimp tooling
- Pack Quantity: 10
- Manufacturer Reference: CAL4-8/K10
- Dimensions (H x L x W): 5.1mm x 26mm x 15mm
- Weight: 0.1 kg
Key Features
- Designed for terminating 4mm² copper conductors onto 8mm studs
- High-conductivity annealed copper crimp barrel
- Tin-plated surface for improved corrosion resistance
- Suitable for general electrical and cable termination applications
- Compatible with standard Australian crimping tools and dies
- Compact ring-lug design for secure stud connections
Professional Installation Requirements
- Crimping should be completed using the correct Australian-standard crimping tool and die. Installation in fixed electrical wiring or electrical equipment should be carried out by a suitably qualified person in accordance with applicable electrical installation requirements.
Applications
- General electrical cable terminations
- Control panels and switchboards
- Battery and automotive wiring
- Low-voltage power connections
- Industrial equipment wiring
- Earthing and bonding connections where the lug is appropriately rated
Standards & Compliance
- Manufacturer-stated conformity with AS 4325 Part 1; this standard is commonly referenced in Australia and New Zealand as AS/NZS 4325.1:1995
Environmental Benefits
- Copper construction is highly recyclable at end of service life
- Durable tin-plated finish can improve corrosion resistance and extend service life
- Reliable crimped terminations can reduce premature replacement and material waste
Warranty Information
Covered by CABAC's applicable warranty terms and Australian Consumer Law guarantees. No product-specific warranty duration was identified.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
