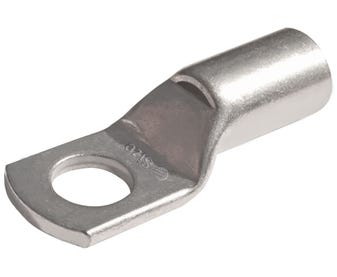

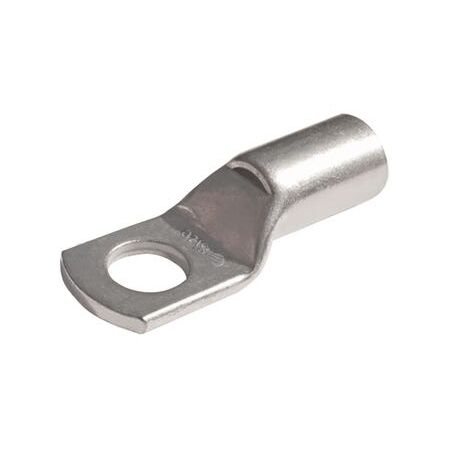

Copper Lug 4mm² Cable 5mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 4mm² cable and 5mm stud—ideal for secure electrical connections in residential, commercial, and industrial wiring. Built for optimal performance, with high conductivity annealed copper and durable tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 4mm2 Cable 5mm Stud
Brand: Cabac
SKU: CAL4-5
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug, 4mm2 Copper Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 4 mm²
- Stranding: 7 strands of 0.85 mm diameter
- ID size: 3.1 mm
- Stud size: 5 mm
- Quantity per box: 100
- Dimensions (H x L x W): 20mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for residential, commercial, and industrial wiring
- Suitable for use in electrical installations requiring secure cable connections
- General use in electrical and power distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss and improves electrical efficiency
- Durable electroplating extends product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 4mm2 Cable 5mm Stud is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable terminations.
