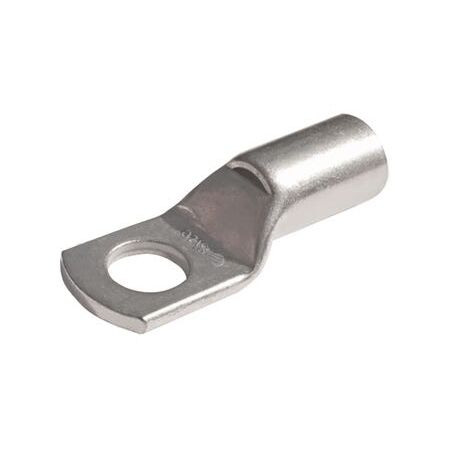

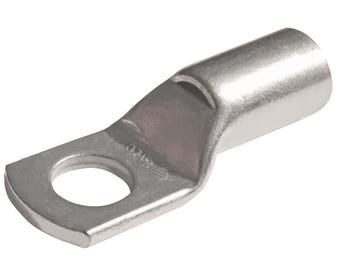

Copper Lug 4mm² Cable 6mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 4mm² cable capacity and 6mm stud size—ideal for secure electrical connections. Built for residential, commercial, and industrial wiring, with high conductivity and tin plating for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 4mm2 Cable 6mm Stud
Brand: Cabac
SKU: CAL4-6
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Wire Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 4 mm²
- Stranding: 7 strands of 0.85 mm diameter
- ID size: 3.1 mm
- Stud size: 6 mm
- Recommended torque for 6 mm thread: 9 Nm
- Dimensions (H x L x W): 5mm x 40mm x 15mm
- Weight: 0.1 kg
Key Features
- Made from 99.95% pure high conductivity annealed copper
- Electroplated with 99.9% pure tin with lead and antimony
- Interchangeable tooling compatible with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for residential, commercial, and industrial wiring
- Suitable for use in electrical installations requiring secure cable connections
- General use crimp lugs for electrical and power connectivity
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss and improves electrical efficiency
- Durable materials extend product life, reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Lug 4mm2 Cable 6mm Stud is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable terminations.
