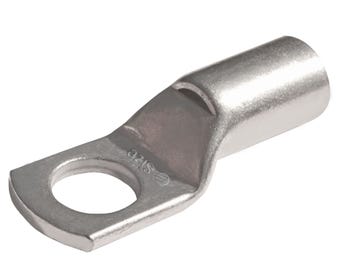

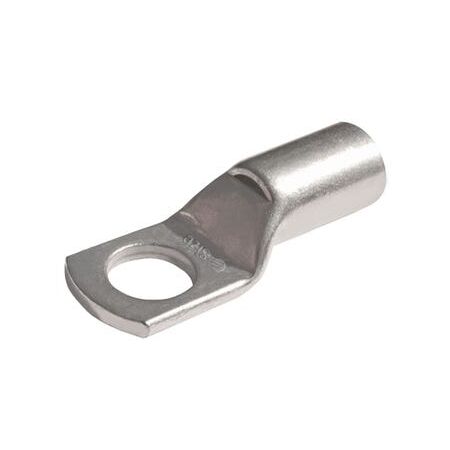

Copper Lug 4mm² Cable 8mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 4mm² cable and 8mm stud—ideal for electrical power connectivity. Built for residential, commercial, and industrial wiring, with high conductivity annealed copper and durable tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 4mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL4-8
Alternatively Known As: Copper Crimp Lug, Electrical Cable Lug, Copper Cable Connector, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 4 mm²
- Stranding: 7 strands of 0.85 mm diameter
- ID size: 3.1 mm
- Stud size: 8 mm
- Quantity per box: 100
- Dimensions (H x L x W): 40mm x 60mm x 15mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for residential, commercial, and industrial wiring
- Suitable for use in electrical installations requiring secure cable connections
- General use in electrical and power distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss and improves electrical efficiency
- Durable materials extend product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 4mm2 Cable 8mm Stud is available now for immediate purchase. Ideal for electrical and power connectivity applications requiring reliable cable terminations.
