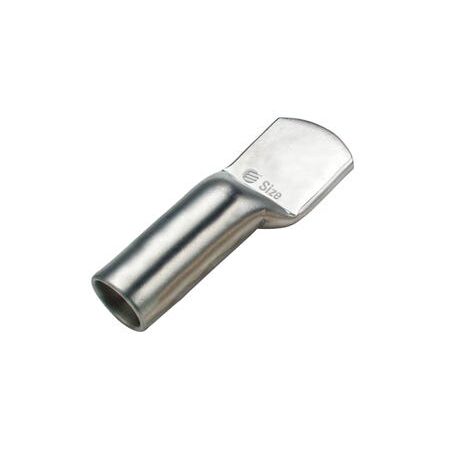

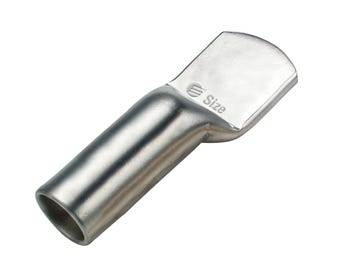

Copper Lug 500mm2 Cable Blank | High Conductivity | Long Barrel Design | Tin Electroplated by Cabac
The Cabac Copper Lug 500mm2 Cable Blank is a high conductivity, outdoor style long barrel lug designed for secure and durable electrical connections in high stress and high voltage applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 500mm2 Cable Blank
Brand: Cabac
SKU: CAL500LB
Alternatively Known As: Copper Cable Lug 500mm2, Long Barrel Copper Lug, Outdoor Copper Lug, High Conductivity Cable Lug
Technical Specifications
- Nominal Conductor Size: 500 mm²
- ID Size: 30.0 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 150mm x 30mm
- Weight: 0.5 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Copper palms solder sealed to prevent water ingress
- Extra long barrel allows more crimps and heatshrink sealing for airtight protection
- Designed for crimping with standard hexagon dies
- Tin electroplating with 5-10 microns thickness for corrosion resistance
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper crimping and secure connections.
Applications
- High voltage terminations
- Drop outfuses
- External electrical connections requiring high conductivity and durability
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Cabac.
Available Now
The Cabac Copper Lug 500mm2 Cable Blank is available for immediate purchase, ideal for electrical and power connectivity applications requiring durable and high conductivity lugs.
