Copper Lug 50mm² Cable | 12mm Stud | Bellmouth Design | High Conductivity by Cabac
Copper lug for 50mm² stranded cable with a 12mm stud—ideal for secure electrical connections. Built for high conductivity and easy conductor insertion with a bellmouth design, perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

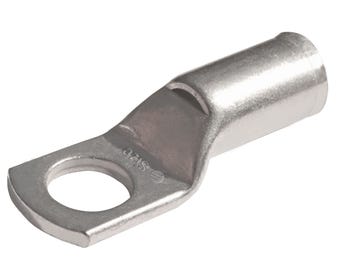

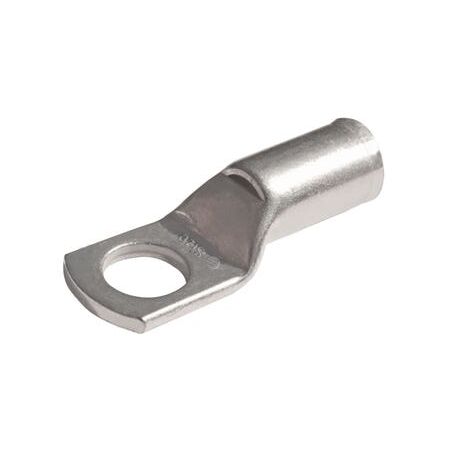

Product Name/Title: Bellmouth Copper Lug 50mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL50-12BM
Alternatively Known As: Copper Cable Lug, Bellmouth Cable Lug, Copper Crimp Lug, Stranded Cable Lug, Electrical Cable Connector
Technical Specifications
- Nominal Conductor Size: 50mm²
- ID Size: 9.5mm
- Stud Size: 12mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 12mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring secure cable connections
Standards & Compliance
- Complies with AS4325.1 for copper cable lugs
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Bellmouth Copper Lug 50mm2 Cable 12mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and easy cable termination.
