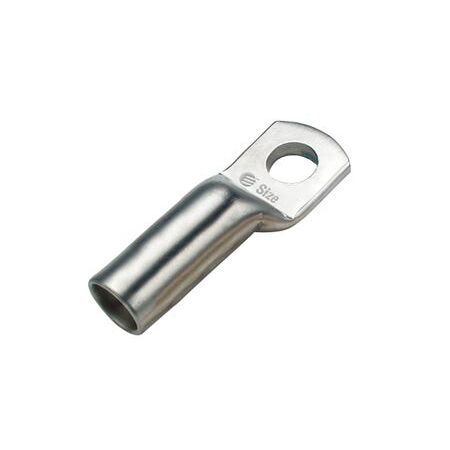

Copper Lug 50mm² Cable 10mm Stud | High Conductivity | Long Barrel Design | Tin Electroplated by Cabac
Copper Lug 50mm2 Cable 10mm Stud by Cabac is a high conductivity, outdoor style long barrel lug designed for secure and durable electrical connections in high stress areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 50mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL50LB-10
Alternatively Known As: Copper Cable Lug 50mm2, Long Barrel Copper Lug, Outdoor Copper Lug 10mm Stud, High Conductivity Copper Lug
Technical Specifications
- Nominal Conductor: 50mm²
- ID Size: 9.5mm
- Stud Size: 10mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Extra long barrel allows more crimps and heatshrink sealing for airtight protection
- Palms are solder sealed to prevent water ingress
- Designed for crimping with standard hexagon dies
- Tin electroplating for corrosion resistance
Professional Installation Requirements
- Installation by a qualified electrician or technician experienced with high voltage cable terminations is recommended to ensure proper crimping and sealing.
Applications
- High voltage terminations
- Drop outfuses
- External electrical connections requiring high conductivity and durability
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from highly recyclable copper material
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Copper Lug 50mm2 Cable 10mm Stud by Cabac is available for immediate purchase, ideal for electrical and power connectivity applications requiring durable and high conductivity lugs.
