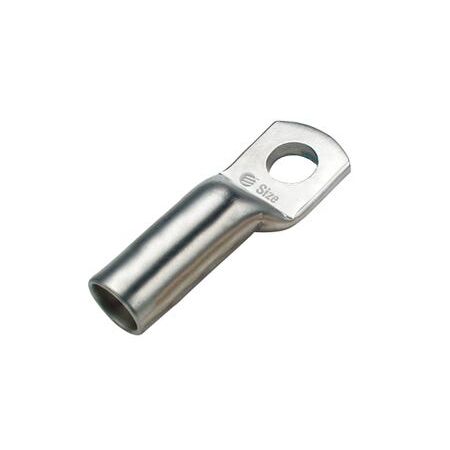

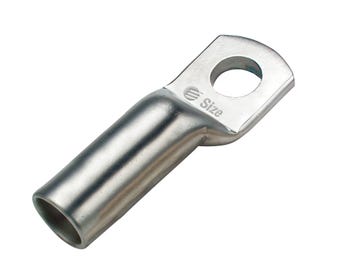

Copper Lug 50mm² Cable 12mm Stud | High Conductivity | Long Barrel Design | Corrosion Resistant by Cabac

BRAND: CABAC
SKU: CAL50LB-12
$11.10 List price: $13.40
+ −
30 Days Return Delivery Options
Copper Lug 50mm2 Cable 12mm Stud by Cabac is a high conductivity, outdoor style long barrel lug designed for reliable electrical connections in high stress areas with excellent corrosion resistance.

Product Name/Title: Copper Lug 50mm2 Cable 12mm Stud

Brand: Cabac

SKU: CAL50LB-12

Alternatively Known As: Copper Cable Lug 50mm2, 12mm Stud Copper Lug, Long Barrel Copper Lug, Outdoor Copper Lug

Technical Specifications
  • Nominal Conductor Size: 50mm²
  • ID Size: 9.5mm
  • Stud Size: 12mm
  • Conductive Material: Copper 99.95% pure
  • Oxygen Content: 30 ppm max
  • Tensile Strength: 200 MPa
  • Ductile Rating: 40%
  • Final Metal State: Fully annealed
  • Electroplating Material: Tin 99.9% pure with lead and antimony
  • Electroplating Thickness: 5-10 microns
  • Total Conductivity: 99.7% IACS
  • Total Resistivity: 1.738 micro-ohm cm
  • Operating Temperature Range: -55 to 155°C
  • Tooling Interchangeable with CABAC, Utilux, and Burndy
  • Dimensions (H x L x W): 12mm x 100mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Made from 99.9%+ high conductivity annealed copper
  • Copper palms solder sealed to prevent water ingress
  • Extra long barrel for more crimps and heatshrink sealing
  • Designed for crimping with standard hexagon dies
  • Tin electroplating for corrosion resistance
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using standard hexagon crimping dies for secure and compliant connections.
Applications
  • High voltage terminations
  • Drop outfuses
  • Electrical power connectivity requiring durable copper lugs
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS4325 Part 1 Australia
Environmental Benefits
  • High conductivity copper reduces energy loss in electrical systems
  • Durable design extends product life reducing waste
Warranty Information

Warranty details available upon request from Cabac.

Available Now

Copper Lug 50mm2 Cable 12mm Stud by Cabac is available for immediate purchase, ideal for electrical power connectivity and high voltage applications.
