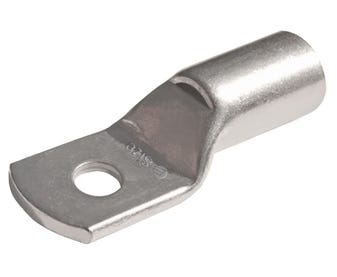

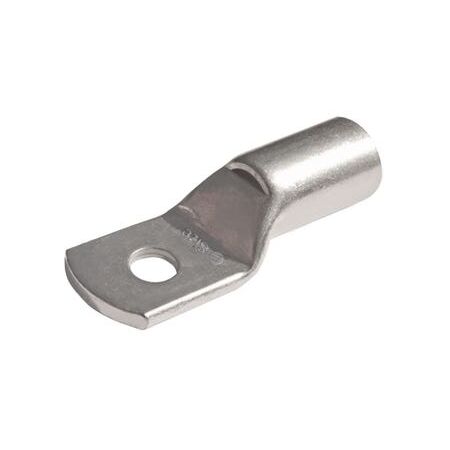

Copper Lug 50mm² Cable 6mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 50mm² cable capacity and 6mm stud—ideal for secure electrical connections. Built for industrial and residential wiring, with high conductivity and durable tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 50mm2 Cable 6mm Stud
Brand: Cabac
SKU: CAL50-6
Alternatively Known As: Copper Crimp Lug 50mm2, 6mm Stud Copper Cable Lug, Electrical Copper Lug, Copper Cable Connector
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 50 mm²
- Stranding: 19 strands of 1.78 mm diameter
- ID size: 9.5 mm
- Stud size: 6 mm
- Recommended torque for 6 mm thread: 9 Nm
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Interchangeable tooling compatible with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tooling to ensure compliance and safety.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring secure cable connections
- Compatible with standard Australian tooling for crimping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss and improves efficiency
- Durable materials extend product life, reducing waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Copper Lug 50mm2 Cable 6mm Stud is available for immediate purchase, ideal for electrical power connectivity applications in residential, commercial, and industrial settings.
