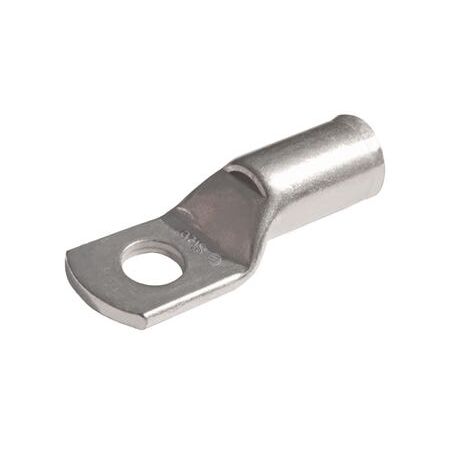

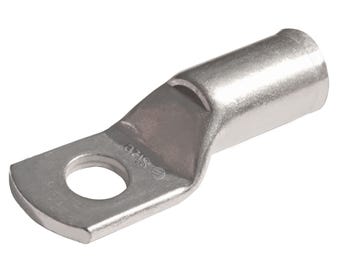

Copper Lug 50mm² Cable | 8mm Stud | Bellmouth Design | High Conductivity by Cabac
Copper lug with 50mm² capacity and 8mm stud—ideal for electrical power connectivity. Built for fine stranded cables, with bellmouth design for easy conductor insertion and high conductivity copper.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 50mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL50-8BM
Alternatively Known As: Copper Cable Lug, Bellmouth Cable Lug, Copper Crimp Lug, Electrical Cable Connector
Technical Specifications
- Nominal Conductor Size: 50mm²
- ID Size: 9.5mm
- Stud Size: 8mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Bellmouth design facilitates easy conductor insertion
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring secure cable connections
- Industrial and commercial electrical wiring applications
Standards & Compliance
- Complies with AS4325.1 for copper cable lugs
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Bellmouth Copper Lug 50mm2 Cable 8mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and easy cable termination.
