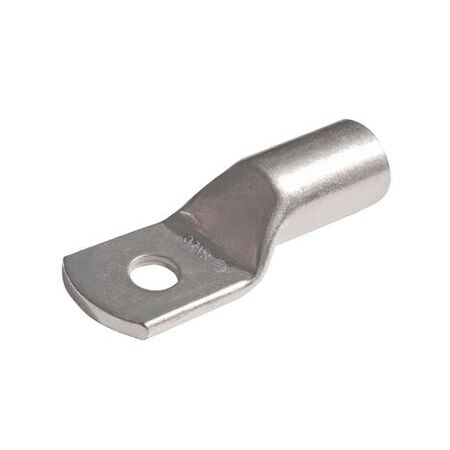

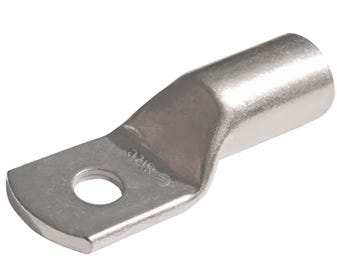

Copper Lug 630mm2 Cable | 10mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 630mm2 cable capacity and 10mm stud—ideal for industrial and commercial electrical installations. Built for optimal electrical performance, with high conductivity annealed copper and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 630mm2 Cable 10mm Stud
Brand: Cabac
SKU: CAL630-10
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Cable Lug, Copper Terminal Lug
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony
- Electroplating thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Torque recommendations (Nm): 5mm thread - 5 Nm, 6mm - 9 Nm, 8mm - 22 Nm, 10mm - 44 Nm, 12mm - 77 Nm, 16mm - 190 Nm
- Dimensions (H x L x W): 20mm x 100mm x 40mm
- Weight: 0.2 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin for corrosion resistance
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Complies with AS4325.1 Australian standard for copper crimp lugs
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure proper connection and compliance with torque specifications.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- General purpose crimp lugs for electrical wiring and cable terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS4325.1 Australian standard for copper crimp lugs
Environmental Benefits
- High conductivity reduces energy loss and improves electrical efficiency
- Durable materials extend product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Copper Lug 630mm2 Cable 10mm Stud is available now for immediate purchase. Ideal for electrical power connectivity and cable termination applications.
