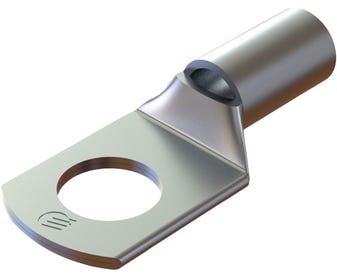

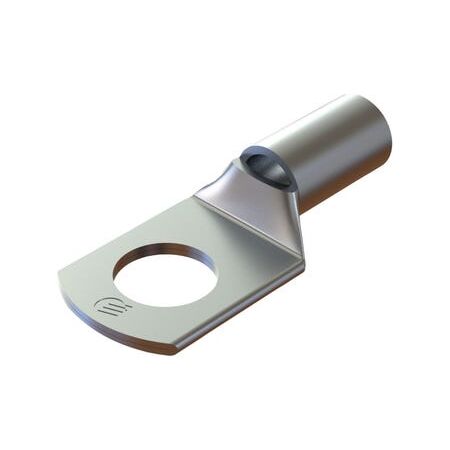

Copper Lug 6mm² 10mm Stud Pack of 10 Cabac
Cabac copper lug features 6mm² conductor size, 10mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, M10 Copper Lug, Ring Terminal
Technical Specifications
- Product Code: CAL6-10
- Conductor Size: 6mm²
- Stud Hole Size: 10mm
- Conductor Stranding: 7 x 1.04mm
- Barrel Inside Diameter: 3.8mm
- Material: 99.95% pure annealed copper
- Surface Finish: 99.9% pure tin electroplating
- Electrical Conductivity: 99.7% IACS
- Tensile Strength: 200MPa
- Connection Type: Crimp
- Recommended Crimping: Standard Australian tooling and dies
- Pack Quantity: 10 lugs
- Manufacturer Box Quantity: 100 lugs
- Recommended Torque for 10mm Hardware: 44Nm
- Dimensions (H x L x W): 0.8mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Designed for terminating 6mm² copper conductors
- 10mm stud hole suits M10 electrical connection hardware
- High-conductivity annealed copper construction
- Tin-plated surface provides corrosion resistance
- Suitable for general-purpose electrical crimp connections
- Compatible with CABAC, Utilux and Burndy tooling systems
- Manufactured to the CABAC standard lug range dimensions
Professional Installation Requirements
- Installation should be performed by a qualified electrician using an approved crimping tool and the manufacturer's recommended tooling, conductor preparation and crimping method. Isolate electrical circuits before installation.
Applications
- Residential electrical wiring terminations
- Commercial electrical installations
- Industrial control and power wiring
- Battery, inverter and low-voltage DC connections
- Earthing and bonding connections where correctly sized and specified
Standards & Compliance
- AS 4325 Part 1 for compression connectors, as stated by CABAC
Environmental Benefits
- Copper is highly recyclable at the end of the product's service life
- Tin-plated copper construction can provide extended service life and reduce replacement waste
- Durable crimped terminations can support reliable electrical connections over the installation lifespan
Warranty Information
Covered by CABAC's applicable product warranty and Australian Consumer Law guarantees; no specific warranty period for this lug was published. Warranty claims are subject to CABAC terms and conditions.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
