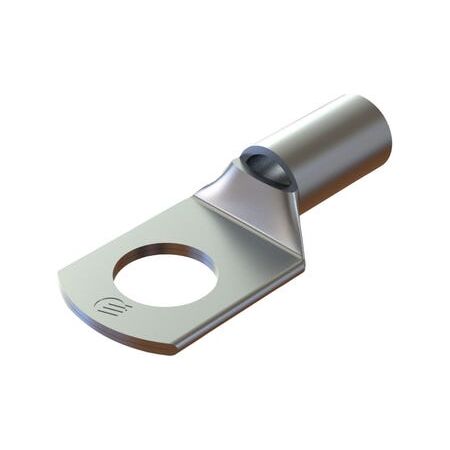

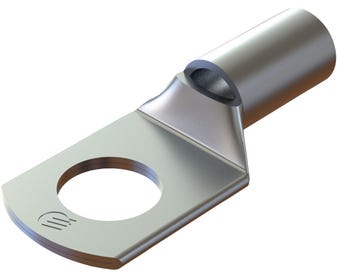

Copper Lug 6mm² 8mm Stud Pack of 10 Cabac
Cabac copper lug features 6mm² conductor size, 8mm stud hole, and annealed copper crimp barrel. Ideal for general cable terminations, supplied as a pack of 10.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 6mm² Copper Cable Lug, M8 Copper Crimp Lug, Tinned Copper Cable Terminal, CAL6-8
Technical Specifications
- Product Code: CAL6-8
- Conductor Size: 6mm²
- Stud Size: 8mm
- Conductor Stranding: 7 strands of 1.04mm diameter
- Barrel Internal Diameter: 3.8mm
- Material: 99.95% pure copper
- Copper Condition: Fully annealed
- Oxygen Content: Maximum 30ppm
- Tensile Strength: 200MPa
- Ductility: 40%
- Plating: 99.9% pure tin, 5–10 microns thick
- Total Conductivity: 99.7% IACS
- Recommended Crimp Tooling: CABAC, Utilux or Burndy standard Australian tooling and dies
- Pack Quantity: 10 lugs
- Dimensions (H x L x W): 1mm x 27mm x 12mm
- Weight: 0.1 kg
Key Features
- High-conductivity annealed copper construction
- Tin-plated surface helps improve corrosion resistance
- Designed for general-purpose copper conductor terminations
- Compatible with standard Australian crimping tooling
- 8mm stud hole for M8 bolted connections
- Compact 27mm lug length
- Suitable for residential, commercial and industrial electrical work
Professional Installation Requirements
- Installation and crimping should be performed by a suitably qualified electrician using the correct die set and in accordance with the applicable electrical installation requirements and manufacturer instructions.
Applications
- General electrical cable terminations
- Switchboards and distribution equipment
- Battery and DC power connections
- Residential, commercial and industrial wiring
- Connecting 6mm² copper conductors to M8 studs
Standards & Compliance
- AS 4325 Part 1 for electrical crimp connections, as specified by CABAC
- Electrical installations should be completed in accordance with AS/NZS 3000 where applicable
Environmental Benefits
- Copper is highly recyclable at the end of service life
- High electrical conductivity can help reduce resistive energy losses at the termination
- Annealed copper and tin plating support a durable connection and may reduce premature replacement waste
Warranty Information
Covered by CABAC warranty terms and Australian Consumer Law guarantees. A specific warranty duration for this lug was not stated by CABAC.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
