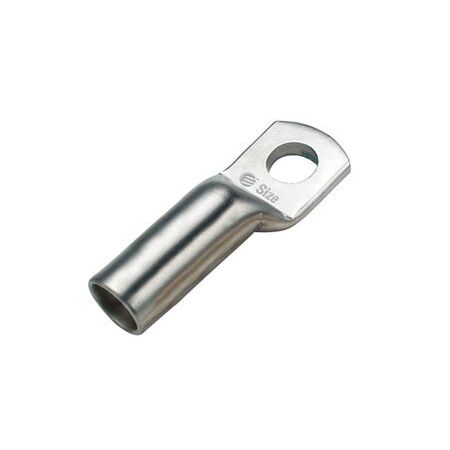

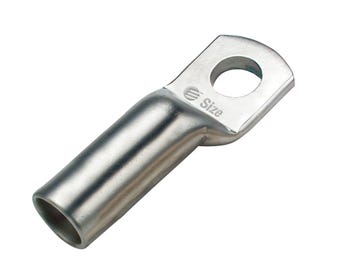

Copper Lug 6mm² M6 Stud Cabac

BRAND: CABAC
SKU: CAL6LB-6
$1.00 List price: $1.30
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Copper Lug features 6mm² cable entry, M6 stud hole, and a standard tinned copper barrel. Ideal for crimped terminations in switchboards.

Alternatively Known As: Copper Cable Lug, Tinned Copper Lug, Ring Terminal, Cable Crimp Lug

Technical Specifications
  • Product Code: CAL6-6
  • Cable Size: 6 mm²
  • Stud Hole Size: 6 mm / M6
  • Material: 99.95% pure annealed copper
  • Plating: 99.9% pure tin, 5–10 microns thick
  • Conductor Stranding: 7 strands of 1.04 mm diameter
  • Barrel Internal Diameter: 3.8 mm
  • Electrical Conductivity: 99.7% IACS
  • Tensile Strength: 200 MPa
  • Packaging Quantity: 100 per box
  • Recommended Crimping: Standard Australian crimping tooling
  • Dimensions (H x L x W): 20mm x 70mm x 50mm
  • Weight: 0.1 kg
Key Features
  • High-conductivity annealed copper construction
  • Tinned barrel provides corrosion resistance and improved contact durability
  • Designed for 6 mm² copper conductors
  • M6 stud hole suits common switchboard and electrical connection hardware
  • Compatible with CABAC, Utilux and Burndy standard tooling
  • Suitable for general-purpose crimped cable terminations
Professional Installation Requirements
  • Installation and crimping should be performed by a suitably qualified electrician using the correct approved tooling, conductor preparation and tightening torque for the application.
Applications
  • Switchboard cable terminations
  • Electrical distribution equipment
  • Industrial control panels
  • Power connectivity and wiring installations
  • General-purpose copper conductor stud connections
Standards & Compliance
  • AS/NZS 4325.1 for compression connectors and terminations
Environmental Benefits
  • Copper is highly recyclable at the end of the product's service life
  • High electrical conductivity can help minimise connection losses
  • Tinned copper construction provides corrosion resistance and can extend service life
  • Durable construction may reduce replacement frequency and material waste
Warranty Information

Covered by CABAC's standard warranty terms, which provide repair or replacement for goods found defective within one year of supply, subject to correct installation, use and applicable Australian Consumer Law rights.

Available Now

Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
