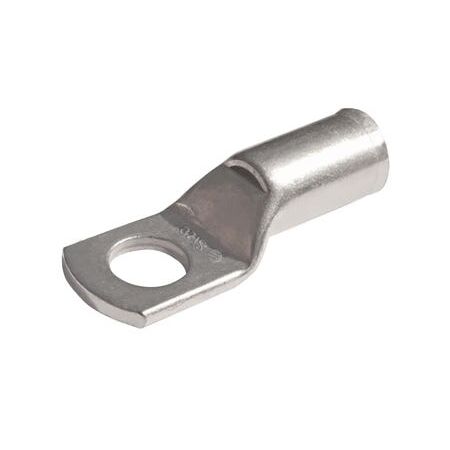

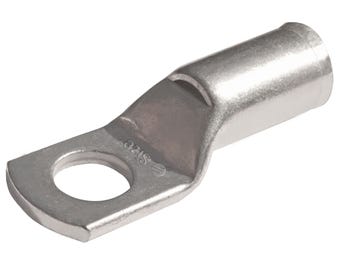

Copper Lug 6mm2 | 6mm Stud | High Conductivity & Corrosion Resistant | Easy Insertion by Cabac
Cabac Bellmouth Copper Lug designed for 6mm2 stranded cable with a 6mm stud, featuring a bellmouth funnel for easy conductor insertion and high conductivity annealed copper construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 6mm2 Cable 6mm Stud
Brand: Cabac
SKU: CAL6-6BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug 6mm2, Bellmouth Cable Lug, Copper Crimp Lug, Electrical Cable Lug
Technical Specifications
- Nominal Conductor: 6mm2
- ID Size: 3.8mm
- Stud Size: 6mm
- Conductive Material: Copper 99.95% pure with oxygen content 30 p.p.m max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.02 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
- Electroplated with 99.9% pure tin for corrosion resistance
Professional Installation Requirements
- Professional installation recommended using appropriate crimping tools and methods for fine stranded cables as per CABAC guidelines.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring secure cable connections
- Ideal for use with stranded cables in industrial and commercial electrical systems
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- Made from highly conductive copper which improves electrical efficiency
- Durable and corrosion-resistant electroplating extends product life reducing waste
Warranty Information
Warranty details available upon request from Cabac sales team.
Available Now
The Cabac Bellmouth Copper Lug 6mm2 Cable 6mm Stud is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable cable termination.
