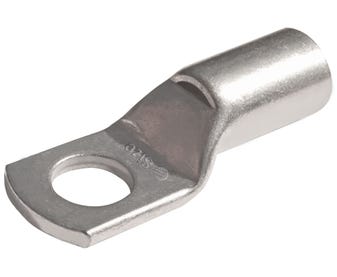

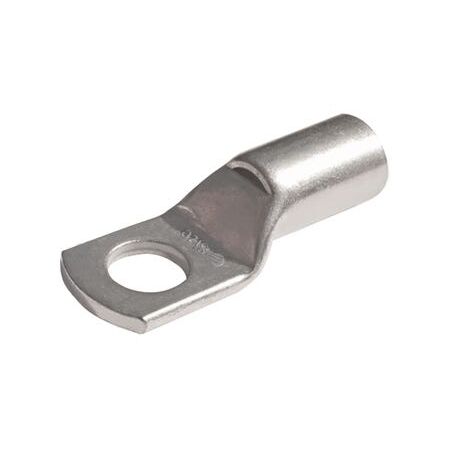

Copper Lug 6mm² Cable 5mm Stud | High Conductivity | Tin Plated by Cabac

BRAND: CABAC

SKU: CAL6-5

$23.00 List price: $27.80

+ −

30 Days Return Delivery Options

Copper lug with 6mm² cable and 5mm stud—ideal for secure electrical connections. Built for residential, commercial, and industrial wiring, with high conductivity and tin plating for durability.

Description

Product Name/Title: Copper Lug 6mm2 Cable 5mm Stud

Brand: Cabac

SKU: CAL6-5

Alternatively Known As: Copper Crimp Lug 6mm2, Copper Cable Lug 6mm², 5mm Stud Copper Lug, Electrical Copper Lug

Technical Specifications

Material: 99.95% pure annealed copper
Oxygen content: 30 ppm max
Tensile strength: 200 MPa
Ductility rating: 40%
Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
Total conductivity: 99.7% IACS
Total resistivity: 1.738 micro-ohm cm
Nominal conductor size: 6 mm²
Stranding: 7 strands of 1.04 mm diameter
ID size: 3.8 mm
Stud size: 5 mm
Recommended torque for 5 mm thread: 5 Nm
Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
Weight: 0.1 kg

Key Features

Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
Electroplated with 99.9% pure tin with lead and antimony for durability
Interchangeable tooling compatible with CABAC, Utilux, and Burndy
Recommended torque values compliant with Australian and New Zealand standards

Professional Installation Requirements

Installation should be performed by a qualified electrician using standard Australian crimping tooling to ensure compliance and safety.

Applications

Electrical power connectivity for residential, commercial, and industrial wiring
Suitable for use in electrical installations requiring secure cable connections
Compatible with standard Australian tooling for crimping

Standards & Compliance

AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

High conductivity reduces energy loss in electrical systems
Durable materials extend product life, reducing waste

Warranty Information

Warranty against manufacturing defects as per Cabac standard policy.

Available Now

The Cabac Copper Lug 6mm2 Cable 5mm Stud is available for immediate purchase, ideal for electrical power connectivity applications.
