Copper Lug 6mm² Cable 8mm Stud | High Conductivity | Easy Insertion Design | Tin Electroplated by Cabac

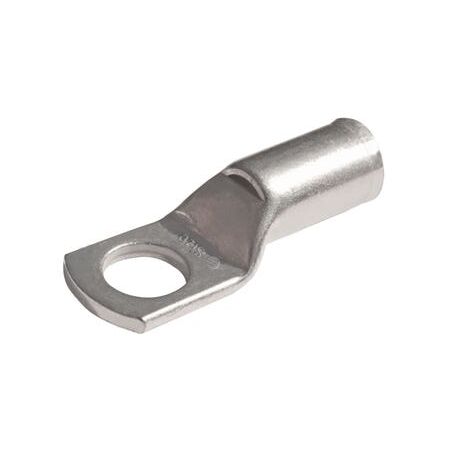

Cabac Bellmouth Copper Lug 6mm2 Cable 8mm Stud is designed for fine stranded flexible cables, featuring a bellmouth funnel for easy conductor insertion and high conductivity annealed copper construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 6mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL6-8BM
Alternatively Known As: Copper Cable Lug, Bellmouth Cable Lug, Copper Crimp Lug, Stranded Cable Lug, Electrical Cable Lug
Technical Specifications
- Nominal Conductor Size: 6 mm²
- ID Size: 3.8 mm
- Stud Size: 8 mm
- Conductive Material: Copper 99.95% pure with oxygen content max 30 ppm
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155 °C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 10mm x 50mm x 20mm
- Weight: 0.01 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
- Electroplated with 99.9% pure tin for corrosion resistance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring secure cable connections
- Ideal for use with stranded cables in industrial and commercial electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS4325.1
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
- Tin electroplating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty details available upon request from Cabac sales team.
Available Now
The Cabac Bellmouth Copper Lug 6mm2 Cable 8mm Stud is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable and easy cable termination.
