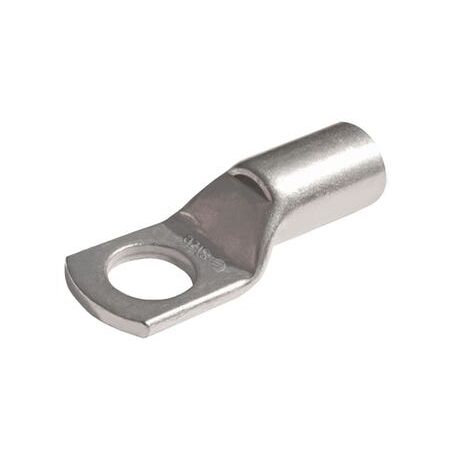

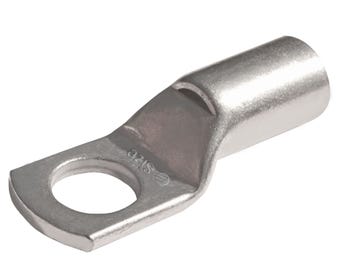

Copper Lug 6mm2 Cable | 8mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 6mm2 cable and 8mm stud—ideal for electrical power connectivity. Built for residential, commercial, and industrial wiring, with high conductivity and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 6mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL6-8
Alternatively Known As: Copper Crimp Lug 6mm2, Copper Cable Lug 6mm2, 8mm Stud Copper Lug, Electrical Copper Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony
- Thickness of plating: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 6 mm²
- Stranding: 7 strands of 1.04 mm diameter
- ID size: 3.8 mm
- Stud size: 8 mm
- Quantity per box: 100
- Dimensions (H x L x W): 30mm x 50mm x 15mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with 5-10 microns thickness for corrosion resistance
- Interchangeable tooling compatible with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure compliance and safety.
Applications
- Electrical power connectivity for residential, commercial, and industrial wiring
- Suitable for use in electrical installations requiring secure cable connections
- Compatible with standard Australian tooling for crimping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable tin plating extends product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Copper Lug 6mm2 Cable 8mm Stud is available for immediate purchase, ideal for electrical power connectivity applications in residential, commercial, and industrial settings.
