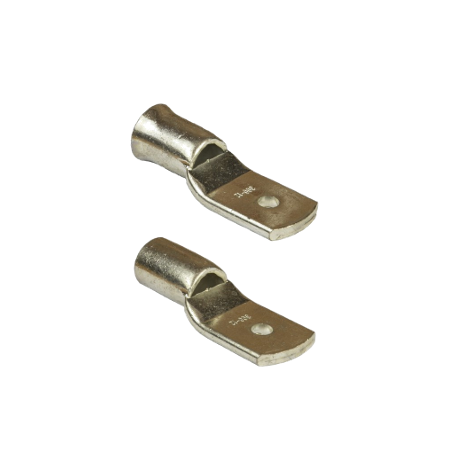

Copper Lug 70mm sq for 8mm Stud | Electro Tinned | Flared Entry Design | 99% Oxygen Free Copper by United Manufacturers Australia
Copper lug designed for 70mm sq cable and 8mm stud, featuring a flared entry for easy installation and electro tinned finish for corrosion resistance. Ideal for secure electrical connections in industrial and commercial applications, ensuring maximum conductivity and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fixed Entry Lug#UMBML70-8
Brand: United Manufacturers Australia
SKU: UMBML70-8
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Electrical Copper Lug, Copper Terminal Lug
Technical Specifications
- Material: 99% oxygen free copper
- Finish: Electro tinned
- Type: Flared Entry
- Size: 70.0mm sq cable to 8.0mm stud
- Operating Temperature: -55°C to +155°C
- Pack Quantity: 25
- Dimensions (H x L x W): 15mm x 100mm x 70mm
- Weight: 0.05 kg
Key Features
- Fully annealed for maximum flexibility and conductivity
- Made from 99% oxygen free copper
- Electro tinned for corrosion resistance
- Flared entry design for easy cable insertion
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical connections requiring secure and reliable copper lugs
- Industrial and commercial electrical wiring
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable copper material
- Electro tinning enhances longevity reducing replacement frequency
Warranty Information
Warranty against manufacturing defects as per United Manufacturers Australia standard policy.
Available Now
The Bell Mouth Copper Lug 70mm sq-8mm stud by United Manufacturers Australia is available now for immediate purchase. Ideal for electrical wiring and industrial applications.
