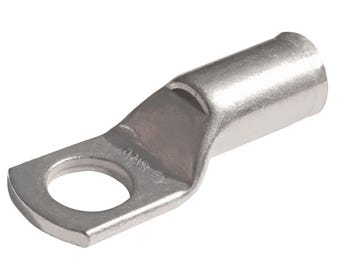

Copper Lug 70mm² | 12mm Stud | Bellmouth Design | High Conductivity by Cabac
Copper lug with 70mm² capacity and 12mm stud—ideal for electrical power connectivity. Built for fine stranded cables, with bellmouth design for easy conductor insertion and high conductivity copper.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

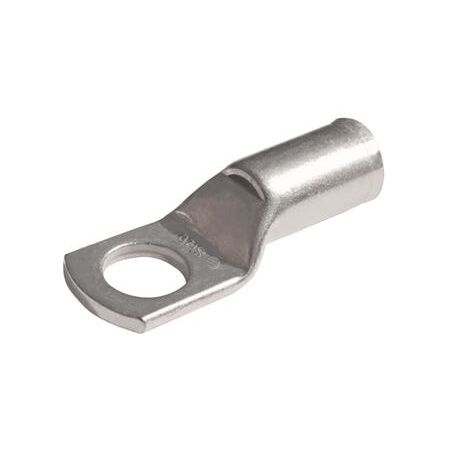

Product Name/Title: Bellmouth Copper Lug 70mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL70-12BM
Alternatively Known As: Copper Cable Lug 70mm2, Bellmouth Cable Lug, Fine Strand Copper Lug, 12mm Stud Copper Lug
Technical Specifications
- Nominal Conductor Size: 70mm²
- ID Size: 11.2mm
- Stud Size: 12mm
- Conductive Material: Copper 99.95% pure with oxygen content max 30 ppm
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 12mm x 70mm x 70mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by qualified electricians is recommended, especially for fine stranded cables requiring higher crimping force and special crimping methods.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring high conductivity lugs
- Ideal for crimping fine strand conductors in industrial and commercial electrical systems
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
- Tin electroplating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty details available upon request from Cabac sales team.
Available Now
The Bellmouth Copper Lug 70mm2 Cable 12mm Stud by Cabac is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and high conductivity cable lugs.
