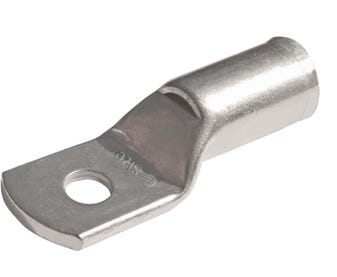

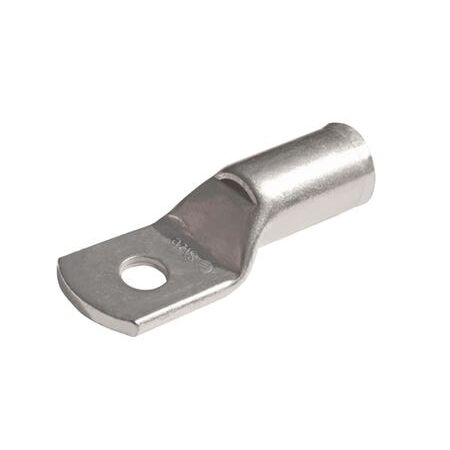

Copper Lug 70mm² Cable | 6mm Stud | Bellmouth Design | High Conductivity by Cabac
Copper lug with 70mm² capacity and 6mm stud—ideal for industrial and commercial electrical installations. Built for fine stranded cables, with a bellmouth design for easy conductor insertion and high conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 70mm2 Cable 6mm Stud
Brand: Cabac
SKU: CAL70-6BM
Alternatively Known As: Copper Bell Mouth Lug, Copper Cable Lug, Stranded Cable Lug, Crimp Copper Lug, Electrical Cable Lug
Technical Specifications
- Nominal Conductor Size: 70mm²
- ID Size: 11.2mm
- Stud Size: 6mm
- Conductive Material: Copper 99.95% pure with oxygen content max 30 ppm
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper crimping and secure connections.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in industrial and commercial electrical installations
- Ideal for crimping and connecting stranded copper cables
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
- Tin electroplating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Bellmouth Copper Lug 70mm2 Cable 6mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and easy-to-install cable lugs.
