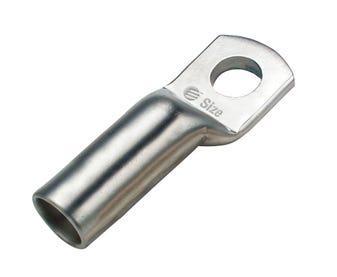

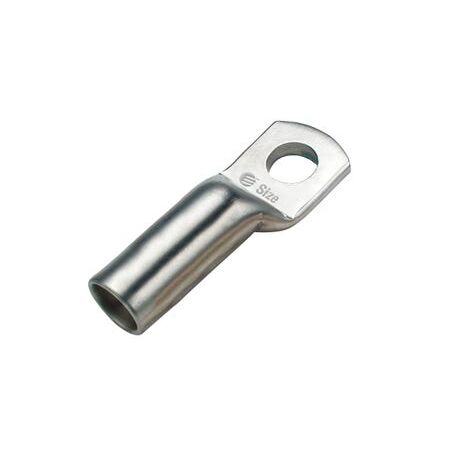

Copper Lug 70mm2 Cable | 12mm Stud | High Conductivity Copper | Extra Long Barrel by Cabac
Copper Lug 70mm2 Cable with 12mm Stud by Cabac, designed for outdoor use with high conductivity copper and extra long barrel for secure crimps and heatshrink sealing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 70mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL70LB-12
Alternatively Known As: Copper Cable Lug, Outdoor Copper Lug, Long Barrel Copper Lug, 70mm2 Cable Lug, 12mm Stud Copper Lug
Technical Specifications
- Nominal Conductor: 70 mm²
- ID Size: 11.2 mm
- Stud Size: 12 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 100mm x 70mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity copper
- Copper palms solder sealed to prevent water ingress
- Extra long barrel for more crimps and heatshrink sealing
- Designed for crimping with standard hexagon dies
- Tin electroplating with 5-10 microns thickness for corrosion resistance
- Operating temperature range from -55 to 155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- High voltage terminations
- Drop outfuses
- Electrical and power connectivity requiring secure cable lugs
- Outdoor electrical installations
Standards & Compliance
- Complies with AS4325 Part 1 Australia
Environmental Benefits
- Made from high purity copper which is recyclable
- Durable design reduces need for frequent replacements
- Tin plating enhances longevity reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
Copper Lug 70mm2 Cable 12mm Stud by Cabac is available for immediate purchase, ideal for outdoor electrical and power connectivity applications.
