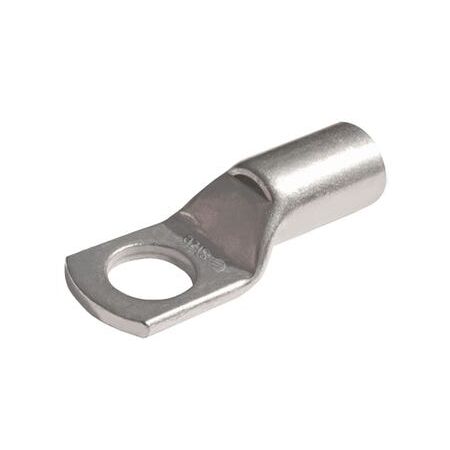

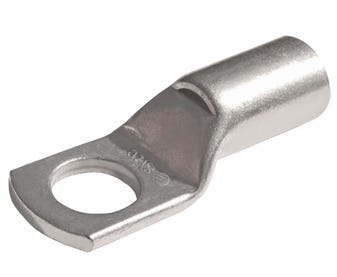

Copper Lug 70mm² Cable 12mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 70mm² cable capacity and 12mm stud—ideal for industrial and commercial electrical installations. Built for optimal electrical performance, with high conductivity copper and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 70mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL70-12
Alternatively Known As: Copper Crimp Lug 70mm2, Copper Cable Lug 12mm Stud, Electrical Copper Lug, Copper Cable Connector
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony
- Electroplating thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 70 mm²
- Stranding: 19 strands of 2.14 mm diameter
- ID size: 11.2 mm
- Stud size: 12 mm
- Recommended torque for 12 mm stud: 77 Nm
- Dimensions (H x L x W): 12mm x 70mm x 70mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin for corrosion resistance
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Suitable for use in electrical wiring and cabling requiring secure and reliable connections
- General use in electrical and power distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity copper reduces energy loss and improves electrical efficiency
- Durable electroplated finish extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 70mm2 Cable 12mm Stud is available for immediate purchase. Ideal for electrical power connectivity and cable termination applications.
