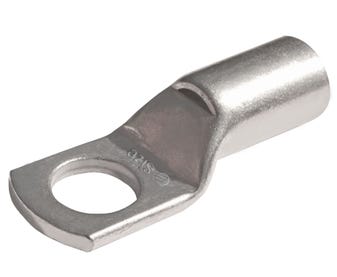

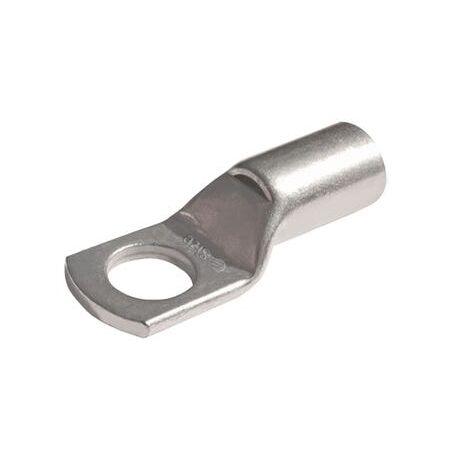

Copper Lug 70mm2 Cable with 16mm Stud | High Conductivity | Durable Tin Plating by Cabac
Cabac Copper Lug 70mm2 Cable with 16mm Stud is a high conductivity annealed copper crimp lug designed for reliable electrical connections with excellent thermal and electrical properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 70mm2 Cable 16mm Stud
Brand: Cabac
SKU: CAL70-16
Alternatively Known As: Copper Crimp Lug 70mm2, 16mm Stud Copper Lug, Electrical Copper Cable Lug, High Conductivity Copper Lug
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductile rating: 40%
- Electroplating: 99.9% pure tin, 5-10 microns thickness
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Operating temperature range: -55 to 155°C
- Nominal conductor size: 70 mm²
- Stranding: 19 strands of 2.14 mm diameter
- ID size: 11.2 mm
- Stud size: 16 mm
- Recommended torque for 16 mm thread: 190 Nm
- Dimensions (H x L x W): 16mm x 70mm x 70mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper
- Capable of withstanding continuous operating temperature of 155°C
- Electroplated with 99.9% pure tin with 5-10 microns thickness
- Tooling interchangeable with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and residential wiring
- Suitable for use in electrical installations requiring high conductivity copper lugs
- General use crimp lugs for electrical and power connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product life and reduce waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Lug 70mm2 Cable 16mm Stud is available for immediate purchase, ideal for electrical power connectivity applications.
