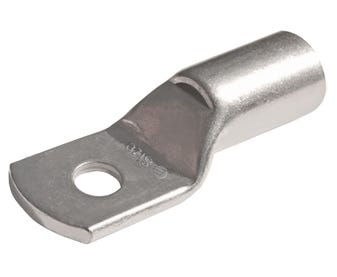

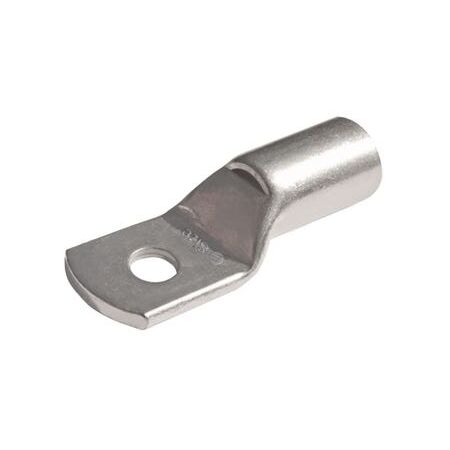

Copper Lug 70mm² Cable 6mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 70mm² cable capacity and 6mm stud—ideal for industrial and commercial electrical installations. Built for optimal electrical performance, with high conductivity annealed copper and durable tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 70mm2 Cable 6mm Stud
Brand: Cabac
SKU: CAL70-6
Alternatively Known As: Copper Crimp Lug 70mm2, Copper Cable Lug 6mm Stud, Electrical Copper Lug, Crimp Terminal Lug
Technical Specifications
- Material: 99.95% pure copper annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 70 mm²
- Stranding: 19 strands of 2.14 mm diameter
- ID size: 11.2 mm
- Stud size: 6 mm
- Quantity per box: 25
- Dimensions (H x L x W): 70mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Suitable for use in electrical wiring and cabling requiring secure and reliable connections
- General use in electrical systems requiring copper crimp lugs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity copper reduces energy loss in electrical systems
- Durable electroplating extends product life reducing waste and replacement frequency
Warranty Information
Warranty information available upon request from the manufacturer.
Available Now
The Cabac Copper Lug 70mm2 Cable 6mm Stud is available for immediate purchase. Ideal for electrical power connectivity in industrial and commercial applications.
