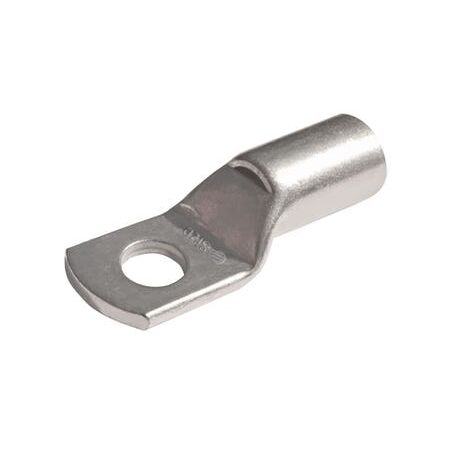

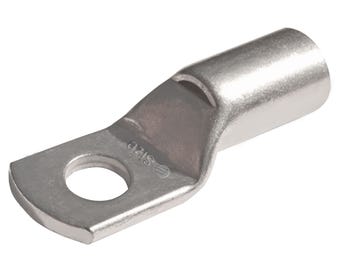

Copper Lug 70mm² Cable 8mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 70mm² cable capacity and 8mm stud—ideal for industrial and commercial electrical installations. Built for optimal electrical performance, with high conductivity annealed copper and corrosion-resistant tin plating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 70mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL70-8
Alternatively Known As: Copper Crimp Lug 70mm2, 8mm Stud Copper Cable Lug, Electrical Copper Lug, Copper Cable Connector
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony
- Electroplating thickness: 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 70 mm²
- Stranding: 19 strands of 2.14 mm diameter
- ID size: 11.2 mm
- Stud size: 8 mm
- Quantity per box: 25
- Dimensions (H x L x W): 50mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin for corrosion resistance
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with Utilux and Burndy brands
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Suitable for use in electrical wiring and cabling requiring secure and reliable connections
- General use in electrical and power distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss and improves electrical efficiency
- Durable materials extend product life, reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms and conditions.
Available Now
The Cabac Copper Lug 70mm2 Cable 8mm Stud is available for immediate purchase. Ideal for electrical and power connectivity applications requiring high-quality copper lugs.
