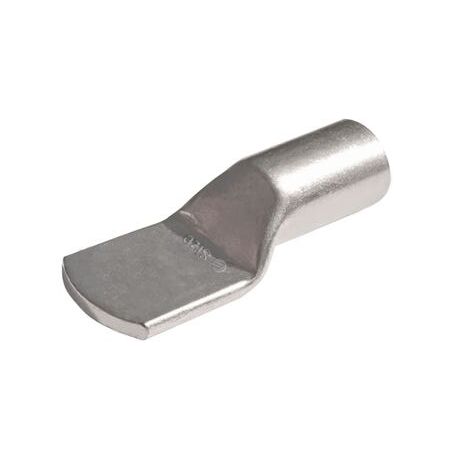

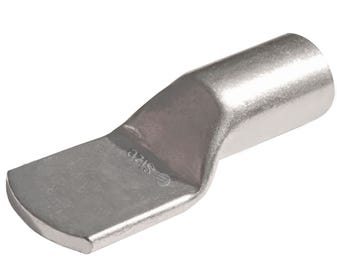

Copper Lug 800mm2 Cable Blank | 99.9% High Conductivity | Durable Electroplating | AS4325 Compliant by Cabac
Cabac Copper Lug 800mm2 Cable Blank is a high conductivity copper crimp lug designed for reliable electrical connections, compliant with AS4325.1 and suitable for general purpose use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 800mm2 Cable Blank
Brand: Cabac
SKU: CAL800
Alternatively Known As: Copper Cable Lug 800mm2, Copper Crimp Lug 800mm2, High Conductivity Copper Lug, Electrical Cable Lug 800mm2
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin with lead and antimony, thickness 5-10 microns
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 800 mm²
- Stranding: 127 strands of 2.85 mm diameter
- ID size: 39.3 mm
- Torque recommendations (Nm): 5 mm thread - 5 Nm, 6 mm - 9 Nm, 8 mm - 22 Nm, 10 mm - 44 Nm, 12 mm - 77 Nm, 16 mm - 190 Nm
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.5 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with lead and antimony for durability
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Complies with AS4325 Part 1 Australian standard and international standards IEC, DIN/VDE, JIS, BS, NEMA
- Recommended torque values provided for secure connections
Professional Installation Requirements
- Installation should be performed by qualified electricians using standard Australian crimping tools to ensure secure and compliant connections.
Applications
- Electrical power connectivity for high current cable terminations
- Industrial and commercial electrical installations
- General purpose crimp lug applications
Standards & Compliance
- Complies with AS4325 – Copper Conductors and Copper Cable Lugs
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electroplating extends product life reducing waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Copper Lug 800mm2 Cable Blank is available for immediate purchase, ideal for electrical power connectivity and industrial applications.
