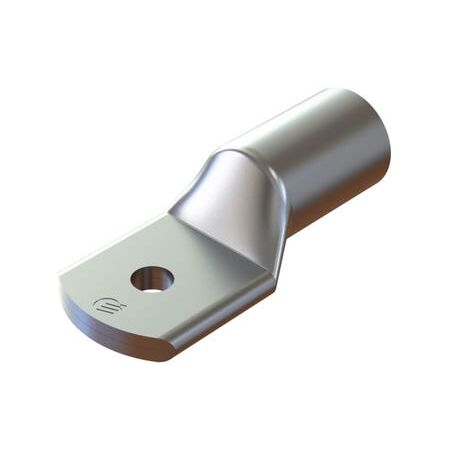

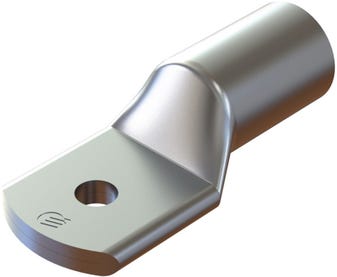

Copper Lug 80mm² M12 Stud Cabac
Cabac Copper Lug features 80mm² cable entry, M12 stud hole, and a seamless copper barrel for crimping. Ideal for switchboard and busbar terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Crimp Lug, Copper Cable Lug, Copper Compression Lug, 80mm² Cable Lug
Technical Specifications
- Conductor Size: 80mm²
- Stud Hole: M12
- Material: High-conductivity annealed copper
- Barrel Type: Seamless copper barrel
- Connection Method: Compression crimping
- Surface Finish: Tin-plated copper
- Tooling: Compatible with CABAC and MSS Power standard crimping dies
- Operating Temperature: Approximately -55°C to +155°C
- Electrical Conductivity: Approximately 99.7% IACS
- Dimensions (H x L x W): 18mm x 75mm x 30mm
- Weight: 0.15 kg
Key Features
- Suitable for 80mm² copper cable
- M12 stud hole for switchboard, busbar and equipment connections
- Seamless barrel supports consistent cable insertion and crimping
- Manufactured from high-conductivity annealed copper
- Designed for use with compatible CABAC and MSS Power crimping tooling
- Suitable for commercial, industrial and electrical distribution applications
Professional Installation Requirements
- Installation should be performed by a licensed electrician using the correct 80mm² crimping die and approved compression procedure. Confirm full conductor insertion, complete crimp formation and the manufacturer's specified terminal tightening torque.
Applications
- Switchboard cable terminations
- Busbar connections
- Circuit breaker and isolator connections
- Industrial power distribution equipment
- Commercial electrical installations
- Copper cable terminations to M12 studs
Standards & Compliance
- AS/NZS 4325.1: Compression connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Copper is highly recyclable and can be recovered at end of product life
- Durable copper construction can reduce replacement frequency and installation waste
- Tin-plated copper supports long-term corrosion resistance and service life
Warranty Information
Covered by CABAC's standard 12-month warranty from the date of purchase, subject to correct installation, use and applicable Australian Consumer Law guarantees.
Available Now
Available through CABAC and authorised Australian electrical distributors; stock status may vary by distributor.
