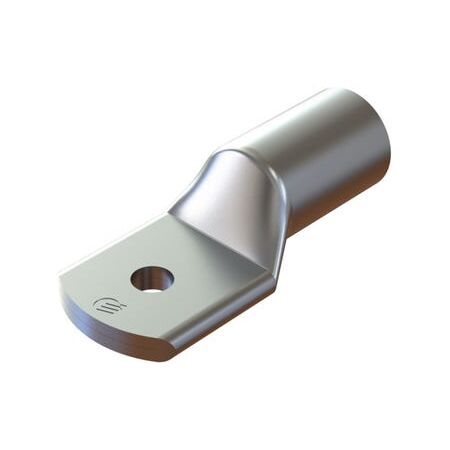

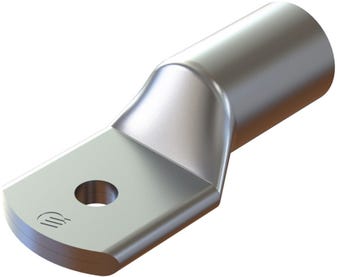

Copper Lug 95mm² M6 Stud Cabac
Cabac Copper Lug features 95mm² cable entry, M6 stud hole, and a seamless copper barrel for crimping. Ideal for switchboard and busbar terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 95 mm² Copper Cable Lug, Copper Compression Lug, Tubular Copper Lug, CABAC CAL95-6
Technical Specifications
- Cable Size: 95 mm²
- Stud Hole: M6 / 6 mm
- Material: High-conductivity annealed copper
- Copper Purity: 99.9%+ copper
- Surface Protection: Tin plated
- Cable Construction Reference: 37/1.78 stranded copper conductor
- Barrel Type: Seamless tubular barrel
- Crimping: One crimp using suitable CABAC, MSS Power or equivalent Australian tooling
- Recommended Crimp Die: HT130-C-95 or equivalent compatible tooling
- Continuous Operating Temperature: Up to 155 °C
- Electrical Conductivity: Approximately 99.7% IACS
- Standard: AS 4325.1
- Dimensions (H x L x W): 27mm x 60mm x 25mm
- Weight: 0.1 kg
Key Features
- Designed for 95 mm² copper cable terminations
- M6 stud hole suits compact switchboard, busbar and equipment connections
- Seamless copper barrel supports consistent crimping and electrical continuity
- High-conductivity annealed copper construction
- Tin-plated surface improves corrosion resistance
- Suitable for standard Australian crimping tooling
- Inspection window assists verification of conductor insertion before crimping
Professional Installation Requirements
- Installation and crimping should be carried out by a suitably qualified electrician using the manufacturer's specified tooling, die and crimping procedure. De-energise the circuit before installation and verify the completed termination in accordance with applicable electrical installation requirements.
Applications
- Switchboard cable terminations
- Busbar connections
- Distribution board and electrical equipment connections
- Industrial power cabling
- Copper conductor compression connections
Standards & Compliance
- AS 4325.1 for compression connectors and mechanical connectors for power cables
Environmental Benefits
- Copper and tin-plated copper components are recyclable at end of service life
- Durable corrosion-resistant construction can extend service life and reduce replacement waste
- Low-resistance, high-conductivity copper supports efficient electrical connections
Warranty Information
CABAC’s general warranty provides repair or replacement for defective goods for one year from the date of supply, subject to correct installation, use and the stated warranty conditions. Australian Consumer Law rights are not excluded.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
