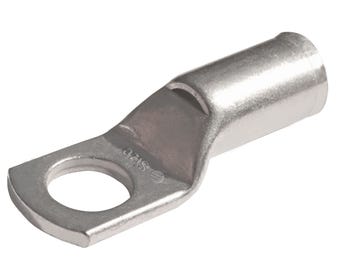

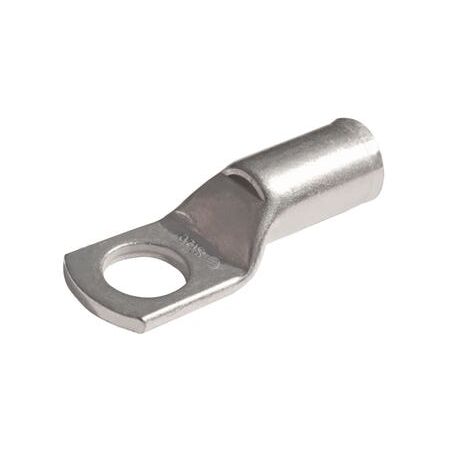

Copper Lug 95mm² Cable | 16mm Stud | Bellmouth Design | High Conductivity by Cabac
Copper lug with 95mm² capacity and 16mm stud—ideal for industrial and commercial electrical wiring. Built for fine stranded cables, with a bellmouth design for easy conductor insertion and high conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Bellmouth Copper Lug 95mm2 Cable 16mm Stud
Brand: Cabac
SKU: CAL95-16BM
Alternatively Known As: Copper Bellmouth Lug, Fine Stranded Cable Lug, Copper Cable Lug 95mm2, 16mm Stud Copper Lug
Technical Specifications
- Nominal Conductor Size: 95mm²
- ID Size: 13.4mm
- Stud Size: 16mm
- Conductive Material: Copper 99.95% pure with oxygen content max 30 ppm
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Electroplating Material: Tin 99.9% pure with lead and antimony
- Electroplating Thickness: 5-10 microns
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Operating Temperature Range: -55 to 155°C
- Tooling Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Made from high conductivity annealed copper
- Crimped with CABAC and MSS Power standard tooling and dies
- Suitable for fine strand conductors
- Bellmouth design makes conductor insertion easier
Professional Installation Requirements
- Professional installation by qualified electricians is recommended to ensure proper crimping and secure connections, especially for fine stranded cables requiring higher crimping force.
Applications
- Electrical power connectivity for fine stranded flexible cables
- Suitable for use in electrical installations requiring high conductivity lugs
- Ideal for industrial and commercial electrical wiring and connections
Standards & Compliance
- Complies with AS4325.1
Environmental Benefits
- High conductivity copper reduces energy loss in electrical connections
- Durable materials extend product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Bellmouth Copper Lug 95mm2 Cable 16mm Stud by Cabac is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable and high conductivity cable lugs.
