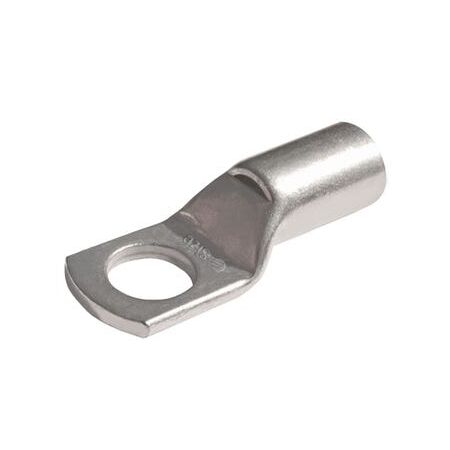

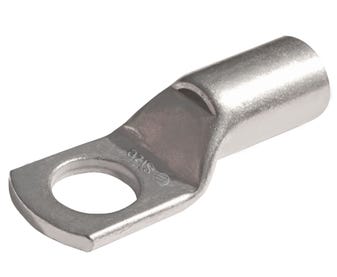

Copper Lug 95mm² Cable 12mm Stud | High Conductivity | Tin Plated by Cabac
Copper lug with 95mm² cable capacity and 12mm stud—ideal for industrial and commercial electrical installations. Built for optimal electrical performance, with high conductivity copper and tin plating for corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Lug 95mm2 Cable 12mm Stud
Brand: Cabac
SKU: CAL95-12
Alternatively Known As: Copper Cable Lug 95mm2, 12mm Stud Copper Crimp Lug, Electrical Copper Lug, Copper Cable Connector
Technical Specifications
- Material: 99.95% pure annealed copper
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility rating: 40%
- Electroplating: 99.9% pure tin, 5-10 microns thickness
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 95 mm²
- Stranding: 37 strands of 1.78 mm diameter
- ID size: 13.4 mm
- Stud size: 12 mm
- Recommended torque: 77 Nm for 12 mm thread diameter
- Dimensions (H x L x W): 10mm x 80mm x 40mm
- Weight: 0.1 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin for corrosion resistance
- Compatible with standard Australian tooling for crimping
- Interchangeable tooling with CABAC, Utilux, and Burndy
- Recommended torque values compliant with Australian and New Zealand standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and torque application according to Australian standards.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Used for secure cable connections in electrical wiring systems
- Suitable for use in electrical distribution and control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable materials extend product life and reduce waste
Warranty Information
Warranty against manufacturing defects as per Cabac standard policy.
Available Now
The Cabac Copper Lug 95mm2 Cable 12mm Stud is available now for immediate purchase. Ideal for electrical power connectivity in industrial and commercial applications.
