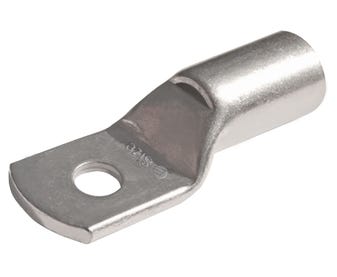

Copper Lug 95mm2 Cable | 8mm Stud | High Conductivity & Corrosion Resistant | Durable Design by Cabac
Cabac Copper Lug 95mm2 Cable with 8mm Stud is a high conductivity annealed copper crimp lug designed for reliable electrical connections in power and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

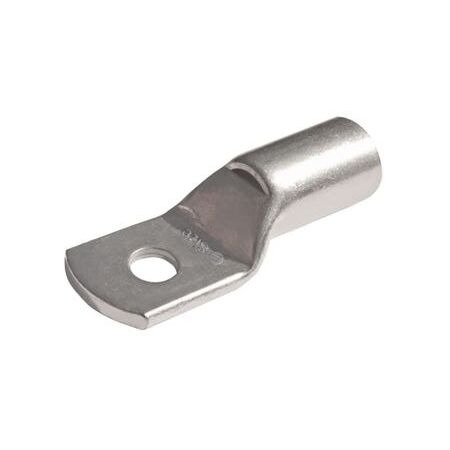

Product Name/Title: Copper Lug 95mm2 Cable 8mm Stud
Brand: Cabac
SKU: CAL95-8-45D
Alternatively Known As: Copper Cable Lug 95mm2, 8mm Stud Copper Crimp Lug, Copper Electrical Lug, Copper Cable Connector
Technical Specifications
- Material: 99.95% pure copper, fully annealed
- Oxygen content: 30 ppm max
- Tensile strength: 200 MPa
- Ductility: 40%
- Electroplating: 99.9% pure tin, 5-10 microns thickness
- Total conductivity: 99.7% IACS
- Total resistivity: 1.738 micro-ohm cm
- Nominal conductor size: 95 mm²
- Stranding: 37 strands of 1.78 mm diameter
- ID size: 13.4 mm
- Stud size: 8 mm
- Recommended torque (Nm): 8 mm stud - 22 Nm
- Dimensions (H x L x W): 10mm x 80mm x 20mm
- Weight: 0.05 kg
Key Features
- Made from 99.9%+ high conductivity annealed copper for optimal electrical performance
- Electroplated with 99.9% pure tin with 5-10 microns thickness for corrosion resistance
- Compatible with standard Australian tooling and interchangeable with Utilux and Burndy tooling
- Recommended torque values compliant with Australian and New Zealand standards
- High tensile strength of 200 MPa and ductile rating of 40%
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian crimping tools to ensure compliance and safety.
Applications
- Electrical power connectivity for industrial and commercial electrical installations
- Suitable for use in electrical wiring and cabling requiring secure and reliable connections
- General use in electrical systems requiring copper crimp lugs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electroplating extends product life reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Lug 95mm2 Cable 8mm Stud is available for immediate purchase, ideal for electrical power connectivity applications.
